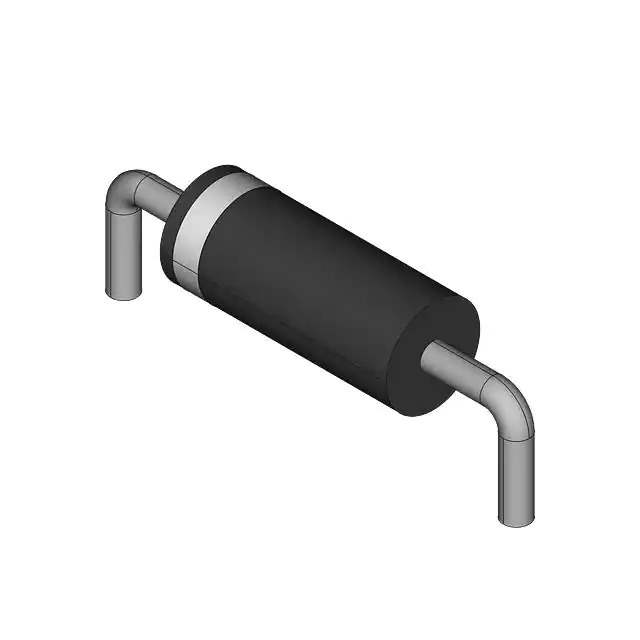

SA130A Real Image
Same model may have multiple batches, images only for reference.

SA130A

Part No SA130A
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 130VWM 209VC DO204AC / 209V Clamp 2.4A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Fairchild/ON Semiconductor
Series SA
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 130V
Voltage - Breakdown (Min) 144V
Voltage - Clamping (Max) @ Ipp 209V
Current - Peak Pulse (10/1000µs) 2.4A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Standard Package 807 pcs
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 932969-SA130A
Ultra Librarian 3D Model Ultra Librarian SA130A CAD Model

Description

The SA130A is a Zener diode transient voltage suppressor (TVS) designed for general-purpose circuit protection applications. It offers unidirectional protection with a reverse standoff voltage of 130V and a breakdown voltage of 144V.

  • Type: Zener diode transient voltage suppressor (TVS)
  • Protection: unidirectional
  • Reverse Standoff Voltage: 130V
  • Breakdown Voltage: 144V
  • Clamping Voltage: 209V @ peak pulse power of 500W
  • Package: through-hole DO-204AC (DO-15)
  • Operating Temperature Range: -55°C to 175°C
  • Product Status: obsolete
