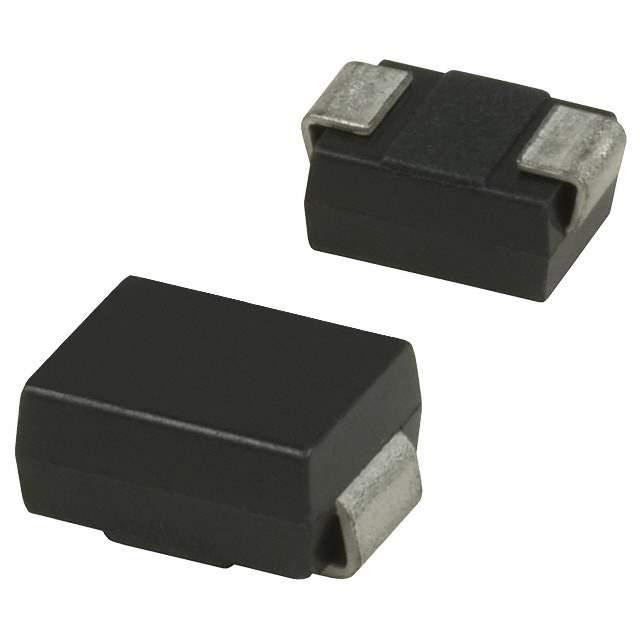

The SMBJ7V5CA is a Transient Voltage Suppressor (TVS) diode manufactured by ON Semiconductor (formerly Fairchild Semiconductor). It is designed to protect sensitive electronic components from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). This particular model is a bidirectional TVS diode.

Applications

• Protection of I/O Interfaces
• AC and DC power lines
• Signal lines
• Microcontroller protection
• Industrial control systems
• Telecom equipment
• Consumer electronics

Features

• Bidirectional TVS diode
• Surface Mount SMB package
• Glass passivated junction
• Excellent clamping capability
• Low incremental surge resistance
• Fast response time
• High surge capability
• RoHS compliant

Benefits

• Provides robust protection against transient voltage events, enhancing system reliability.
• Bidirectional protection simplifies circuit design by protecting against both positive and negative surges.
• Compact SMB package saves board space.
• Fast response time ensures effective clamping of transient voltages.
• High surge capability allows it to handle large transient events.
• Meets industry standards for environmental compliance.

Additional Details

The SMBJ7V5CA has a standoff voltage of 7.5V and a peak pulse power rating that depends on the specific test conditions. Being bidirectional, it protects against both positive and negative voltage spikes. The SMB package allows for efficient surface mounting. This TVS diode is suitable for applications where board space is limited and robust transient protection is required. Its glass-passivated junction ensures high reliability and long-term stability.

ON Semiconductor is a global leader in semiconductor manufacturing, and the SMBJ7V5CA reflects their commitment to quality and performance. It is a popular choice for protecting sensitive electronics across a wide range of applications.
