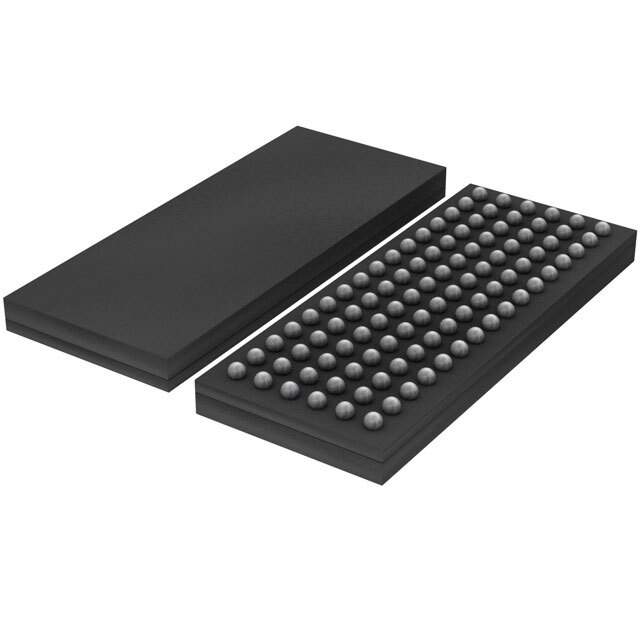

The SSTV16859G is a 16-bit to 2-bit registered driver from Fairchild Semiconductor (now ON Semiconductor). It is designed for high-speed memory and bus interface applications. This device provides high drive capability and is used for data buffering and signal enhancement in various digital systems.

Applications:

• Memory Interfacing: Used for interfacing memory devices with microprocessors and other digital components.
• Bus Driving: Provides high drive capability for driving heavily loaded buses in digital systems.
• Data Buffering: Buffers data signals to improve signal integrity and reduce signal degradation.
• Clock Distribution: Distributes clock signals with minimal skew and jitter.
• High-Speed Digital Systems: Used in high-speed digital systems where signal integrity is critical.

Features:

• 16-Bit to 2-Bit Registered Driver: Provides bidirectional data transfer between 16-bit and 2-bit buses.
• High Drive Capability: Delivers high output current for driving heavily loaded buses.
• Low Propagation Delay: Ensures fast data transfer and minimal signal delay.
• TTL Compatible Inputs: Compatible with TTL (Transistor-Transistor Logic) input levels.
• 3.3V Operation: Operates at a supply voltage of 3.3V.
• Advanced CMOS Technology: Utilizes advanced CMOS (Complementary Metal-Oxide-Semiconductor) technology for low power consumption.
• Surface Mount Package: Typically available in a TSSOP (Thin Shrink Small Outline Package) for compact board design.

Benefits:

• Improved Signal Integrity: High drive capability and low propagation delay enhance signal integrity.
• High-Speed Performance: Enables fast data transfer in high-speed digital systems.
• Low Power Consumption: CMOS technology reduces power consumption and improves energy efficiency.
• Simplified System Design: Integrated features reduce the need for external components.
• Compact Design: Small surface mount package allows for high-density board layouts.

Additional Details:

The SSTV16859G typically has a propagation delay in the nanosecond range, making it suitable for high-speed applications. It often includes features such as output enable control, allowing for selective enabling or disabling of the outputs. The device is designed to operate over a wide temperature range, typically from -40°C to +85°C. Detailed specifications, including propagation delay times, output current ratings, and power consumption characteristics, can be found in the device's datasheet. It's used in networking equipment, telecommunications systems, and various industrial applications.
