Same model may have multiple batches, images only for reference.

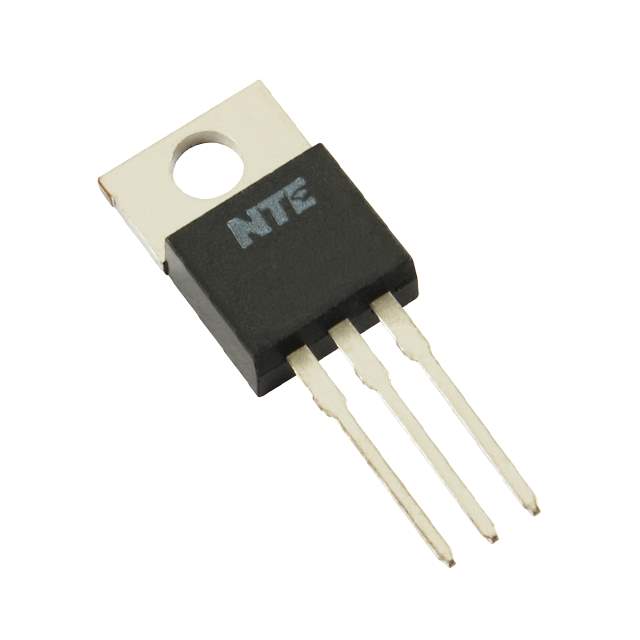

TIP110 Real Image
Same model may have multiple batches, images only for reference.

TIP110

Part No TIP110
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 60V 2A TO220AB
Datasheet
TIP110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Transistor Polarity NPN - Darlington
Maximum Current Collector 2A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 2.5V @ 8mA, 2A
Collector Cut-off Current(Max) 2mA
Typical Gain (hFE) (Min) 1000 @ 1A, 4V
Maximum Power Dissipation 2W
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 054349-TIP110
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian TIP110 CAD Model

Description

The TIP110 is an NPN Darlington transistor manufactured by ON Semiconductor.

  • Supply and Demand Status: balanced
  • Applications: power management and industrial applications
  • Maximum Current Collector: 2A
  • Collector-Emitter Breakdown Voltage: 60V
  • Maximum Power Dissipation: 2W
  • Typical Gain (hFE): 1000 @ 1A and 4V
  • Maximum Collector-Emitter Saturation Voltage: 2.5V @ 8mA and 2A
  • Package: TO-220AB
