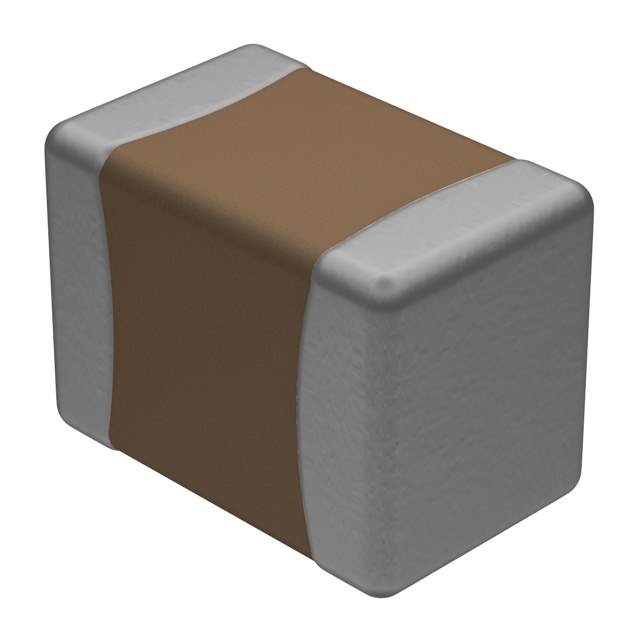

The 0805B102K500NT is a multilayer ceramic capacitor (MLCC) manufactured by Fenghua Electronics. MLCCs are widely used in electronic circuits for various purposes, including decoupling, bypassing, filtering, and energy storage. The 0805 designation refers to the EIA (Electronic Industries Alliance) standard size code, indicating the physical dimensions of the capacitor. This particular capacitor offers a capacitance of 1000pF (102) with a tolerance of ±10% (K). The 500 in the part number indicates a voltage rating of 50V (500 indicates 50 x 10^0 V).

Applications

• Decoupling: Used to suppress noise and voltage fluctuations in digital circuits, power supplies, and microcontrollers.
• Bypassing: Directs high-frequency signals to ground, preventing them from interfering with other components.
• Filtering: Used in signal processing circuits to filter out unwanted frequencies.
• Timing Circuits: Can be used in timer circuits with resistors for specific time delays.

Features

• Small Size: The 0805 package offers a compact footprint, suitable for high-density circuit boards.
• High Capacitance: Provides a capacitance of 1000 pF, suitable for many general-purpose applications.
• Voltage Rating: Rated for 50V, allowing it to be used in various voltage environments.
• Reliable Performance: MLCCs are known for their long lifespan and stable performance over temperature.
• Surface Mount Technology (SMT): Designed for automated assembly, which lowers production costs and improves reliability.

Benefits

• Improved Circuit Stability: By providing decoupling and bypassing, the capacitor contributes to a more stable and reliable circuit.
• Reduced Noise: Effectively reduces noise in electronic circuits, improving signal integrity.
• Compact Design: The small size allows for a more compact and efficient circuit design.
• Cost-Effective: MLCCs are generally cost-effective compared to other capacitor types.
• Ease of Assembly: SMT design simplifies the assembly process and reduces manufacturing time.

Additional Details

The 0805B102K500NT typically utilizes a ceramic dielectric material, providing stable electrical characteristics. It is RoHS compliant, indicating that it meets environmental standards for the restriction of hazardous substances. The operating temperature range is usually between -55°C to +125°C, making it suitable for various operating environments. The tolerance of ±10% means the actual capacitance value can vary by ±10% from the nominal value of 1000pF. The terminal finish is typically a solderable material, such as nickel barrier with tin plating, ensuring good solderability to the PCB pads.
