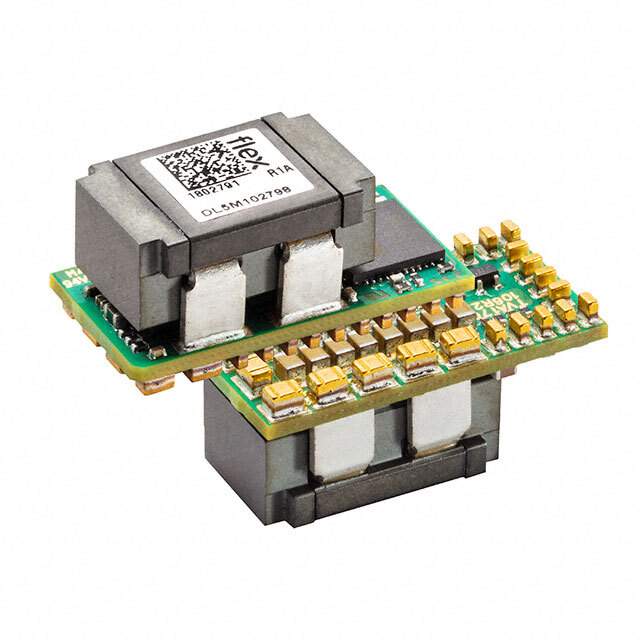

BMR4696001/001 Real Image
Same model may have multiple batches, images only for reference.

BMR4696001/001

Part No BMR4696001/001
Manufacturer Flex Power Modules
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5V 250W / Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 50A 7.5V - 14V Input
Datasheet
BMR4696001/001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Flex Power Modules
Series BMR469 (100W)
Package Tape & Reel
Type Non-Isolated PoL Module, Digital
Number of Outputs 1
Voltage - Input (Min) 7.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.6 ~ 5V
Current - Output (Max) 50A
Power (Watts) 250 W
Applications ITE (Commercial)
Features Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Temperature Range - Operating -40°C ~ 125°C (With Derating)
Efficiency 94.4%
Mounting Type Surface Mount
Package / Case 28-SMD Module
Size / Dimension 1.00" L x 0.57" W x 0.23" H (25.4mm x 14.5mm x 5.8mm)
Control Features Enable, Active High
Approval Agency CB, CSA, IEC, TUV, UL
Standard Number 62368-1
Base Product Number BMR469
Standard Package 100
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338521-BMR4696001/001
Ultra Librarian 3D Model Ultra Librarian BMR4696001/001 CAD Model

Description

The BMR469 (100W) is a non-isolated PoL module that comes with adjustable output, PMBus™, remote on/off, and remote sense features.

  • Type: Non-Isolated PoL Module
  • Features: Adjustable Output, PMBus™, Remote On/Off, and Remote Sense
  • Size: 1.00" L x 0.57" W x 0.23" H (25.4mm x 14.5mm x 5.8mm)
  • Application: ITE (Commercial)
  • Power Rating: 250 W
  • Maximum Output Current: 50A
  • Efficiency: 94.4%
  • Operating Temperature: -40°C ~ 125°C (With Derating)
  • Approvals: CB, CSA, IEC, TUV, and UL
  • Standard Number: 62368-1
