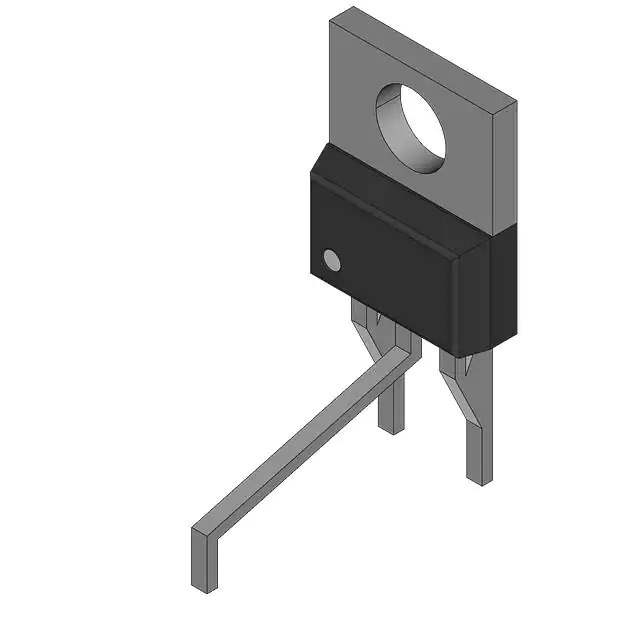

BD791 Real Image
Same model may have multiple batches, images only for reference.

BD791

Part No BD791
Manufacturer Freescale Semiconductor - NXP
Catalog Transistors (BJT) - Single
Description POWER BIPOLAR TRANSISTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 4 A
Voltage - Collector Emitter Breakdown (Max) 100 V
Vce Saturation (Max) @ Ib, Ic 3V @ 800mA, 4A
Current - Collector Cutoff (Max) 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 200mA, 3V
Power - Max 15 W
Frequency - Transition 40MHz
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-225-3
Standard Package 807 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 0000.00.0000
Win Source Part Number 570177-BD791
Ultra Librarian 3D Model Ultra Librarian BD791 CAD Model

Description

The 570177-BD791 is a single bipolar transistor from the NPN series of discrete semiconductor products.

  • Category: Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
  • Package: TO-225AA, TO-126-3
  • Mounting: Through-hole
  • Power: 15W
  • Collector-Emitter Breakdown Voltage: 100V
  • Collector Current: 4A
  • Vce Saturation: 3V @ 800mA and 4A
  • Collector Cutoff Current: 100μA
  • DC Current Gain: 40 @ 200mA and 3V
  • Frequency Transition: 40MHz
  • Status: Active
  • Win Source Part Number: 570177-BD791
