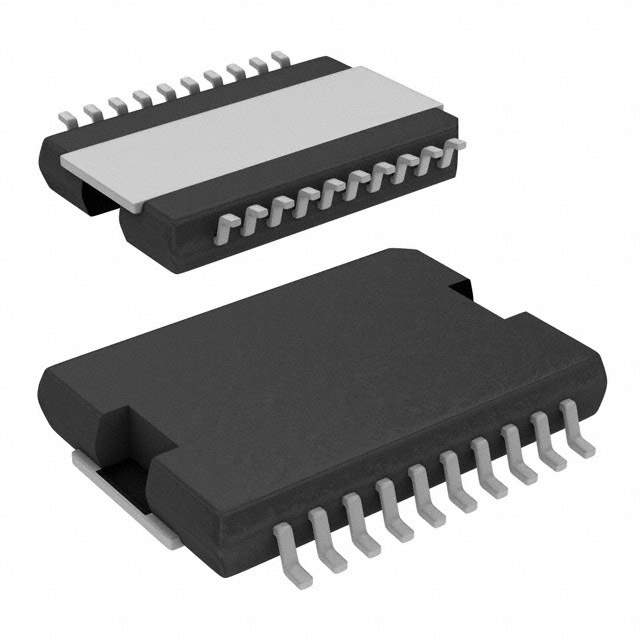

The MC33385DH is a SMARTMOS monolithic H-Bridge integrated circuit designed for driving DC motors or inductive loads in automotive and industrial applications. This device integrates sophisticated protection features and diagnostic capabilities to ensure reliable operation and enhance system safety. It's often used in applications requiring precise motor control and robust fault handling.

Applications:

• Automotive motor control: Electronic throttle control, exhaust gas recirculation (EGR) valves, and HVAC actuators.
• Industrial motor control: Robotic systems, conveyor systems, and valve actuators.
• DC motor drives: General-purpose DC motor control applications.
• Solenoid drivers: Applications requiring precise control of inductive loads.

Features:

• Integrated H-Bridge: Provides bidirectional motor control capability.
• SMARTMOS Technology: Offers low on-resistance and high efficiency.
• Overcurrent Protection: Limits the output current to protect the device from damage.
• Overtemperature Protection: Shuts down the device if the junction temperature exceeds a safe limit.
• Short-Circuit Protection: Protects the device from short circuits to ground or the supply voltage.
• Undervoltage Lockout: Prevents operation when the supply voltage is too low.
• Diagnostic Feedback: Provides status information about the device's operation, including fault conditions.
• PWM Control: Allows for precise speed and torque control of the motor.

Benefits:

• Increased System Reliability: Robust protection features prevent damage from common fault conditions.
• Simplified System Design: Integrated functionality reduces component count and board space.
• Improved Motor Control: PWM control enables precise speed and torque regulation.
• Enhanced System Safety: Diagnostic feedback allows for early detection of potential problems.
• High Efficiency: SMARTMOS technology minimizes power dissipation.

Additional Details:

The MC33385DH typically operates from a supply voltage of 5V to 28V. The device is available in a surface-mount package suitable for automated assembly. The diagnostic feedback includes information about overcurrent, overtemperature, and undervoltage conditions. The H-Bridge is designed to handle substantial current loads depending on the specific variant. The device can be controlled via logic level inputs, allowing easy interface to microcontrollers and other digital control systems. It's designed to meet automotive-grade quality standards for long life and reliability.
