MC33926PNB

Part No MC33926PNB
Manufacturer Freescale Semiconductor - NXP
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 32PQFN
Datasheet
MC33926PNB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology CMOS
Applications Automotive
Output Current 5A
Supply Voltage - Operating 5 V to 28 V
Voltage - Load 5 V to 28 V
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)

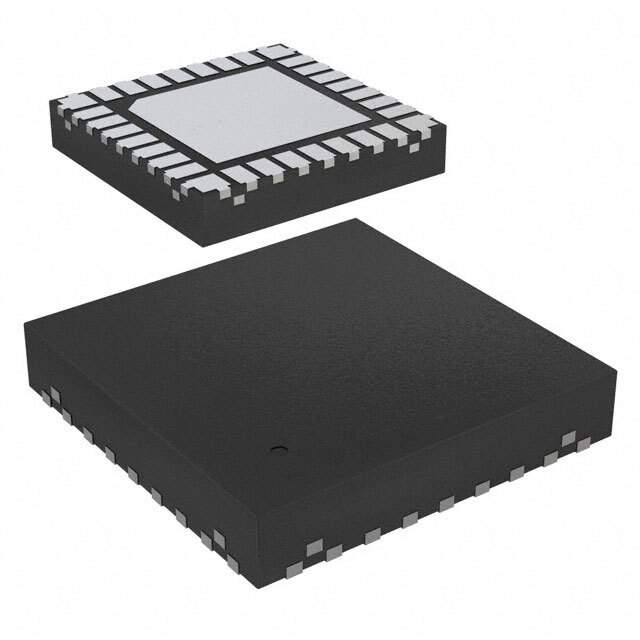

Case / Package 32-PQFN (8x8)
Win Source Part Number 074511-MC33926PNB
Ultra Librarian 3D Model Ultra Librarian MC33926PNB CAD Model

Description

The NXP MC33926PNB is a fully integrated driver and control power stage integrated circuit manufactured by NXP.

  • Application: Various electronic devices that require a driver
  • Design: Compact
  • Suitability: Portable devices
  • Output Current: Up to 5A
  • Voltage Load: 5V to 28V
  • Motor Type: Brushed DC motors
  • Temperature Range: -40°C to 125°C
  • Supply Voltage: 5V to 28V
