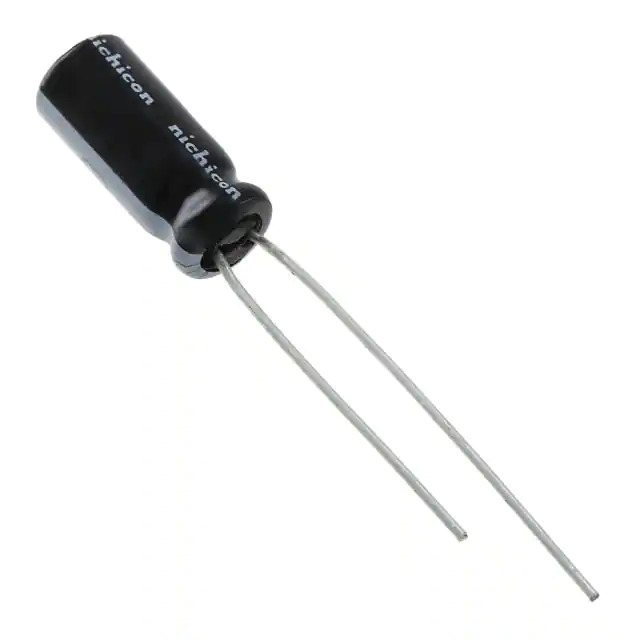

Same model may have multiple batches, images only for reference.
UVZ1H100MDD Nichicon
Same model may have multiple batches, images only for reference.

UVZ1H100MDD

Part No UVZ1H100MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V RADIAL / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ1H100MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Bulk
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 46 mA @ 120 Hz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357628-UVZ1H100MDD
Ultra Librarian 3D Model Ultra Librarian UVZ1H100MDD CAD Model

Description

The UVZ series aluminum electrolytic capacitor from Nichicon is a through-hole component with a capacitance of 10 μF and a voltage rating of 50 V.

  • Manufacturer: Nichicon
  • Product: UVZ series
  • Mounting Type: Through Hole
  • Capacitance: 10 μF
  • Voltage Rating: 50 V
  • Temperature Range: -55°C to 105°C
  • Application: General Purpose
  • Diameter: 0.197" (5.00mm)
  • Seated Height: 0.492" (12.50mm)
  • Ripple Current: 46 mA @ 120 Hz
  • Lifetime: 1000 hours @ 105°C
  • RoHS: Compliant
  • REACH: Unaffected
