Same model may have multiple batches, images only for reference.

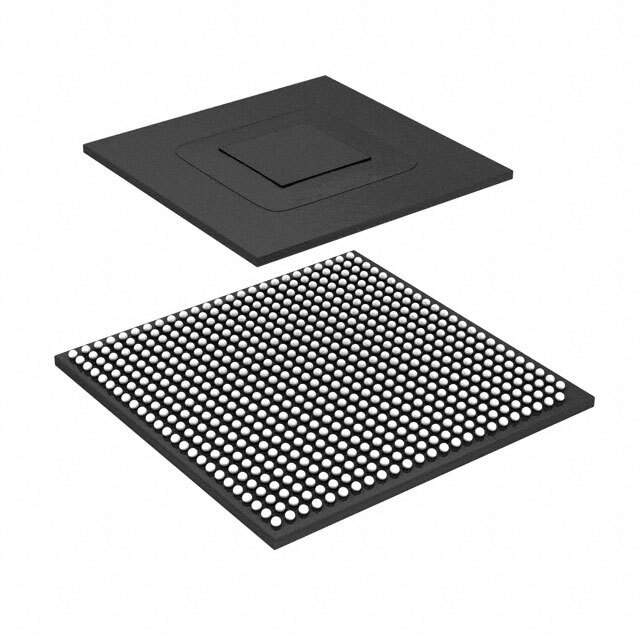

MCIMX6S6AVM08ABR Real Image
Same model may have multiple batches, images only for reference.

MCIMX6S6AVM08ABR

Part No MCIMX6S6AVM08ABR
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6S 800MHZ 624MAPBGA
Datasheet
MCIMX6S6AVM08ABR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Core Processor ARM Cortex-A9
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 800MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000 Mbps (1)
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C to 125°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Case / Package 624-MAPBGA (21x21)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Win Source Part Number 142399-MCIMX6S6AVM08ABR
Ultra Librarian 3D Model Ultra Librarian MCIMX6S6AVM08ABR CAD Model

Description

The NXP 142399-MCIMX6S6AVM08ABR is a high-performance processor designed for a wide range of applications.

  • Core Processor: ARM Cortex-A9
  • Bus Width: 32-bit
  • Clock Speed: 800MHz
  • Multimedia: Multimedia and NEON SIMD co-processors
  • RAM Controller Type: LPDDR2, LVDDR3, and DDR3
  • Graphics Acceleration: Yes
  • Display and Interface Controllers: Keypad and LCD
  • Ethernet: 10/100/1000 Mbps Ethernet
  • USB: USB 2.0 + PHY
  • Additional Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
  • Security Features: ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, and Tamper Detection
  • Operating Temperature: -40°C to 125°C
  • Package: 624-MAPBGA (21x21)
