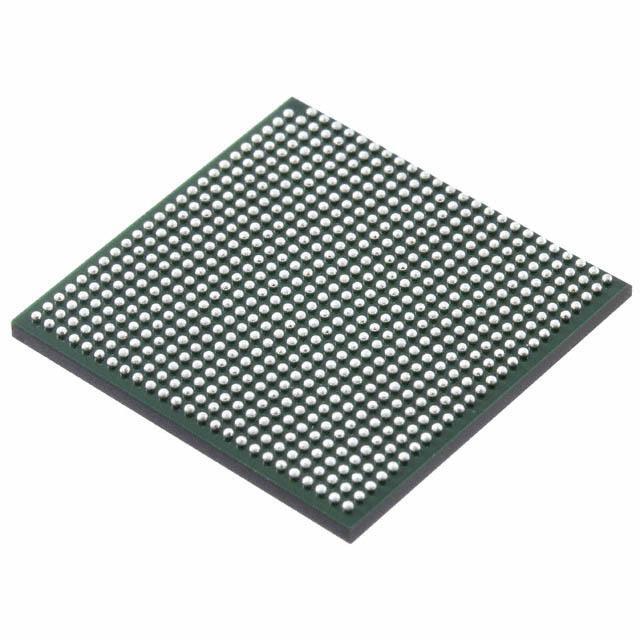

The NXP MCIMX6U5EVM10AB is a high-performance microprocessor that features an ARM Cortex-A9 core processor with two cores and 32-bit bus width.

• Core Processor: ARM Cortex-A9
• Cores: Two
• Bus Width: 32-bit
• Speed: 1.0 GHz
• Voltage Range: 1.8V, 2.5V, 2.8V, 3.3V
• Case/Package: 624-MAPBGA (21x21)
• Temperature Range: -20°C to 105°C (TJ)
• Co-processors/DSP: Multimedia and NEON SIMD
• RAM Controllers: LPDDR2, LVDDR3, DDR3
• Graphics Acceleration: Yes
• Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
• Security Features: ARM TZ, boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory, secure RTC, and tamper detection
• Applications: Automotive, industrial, and consumer electronics
