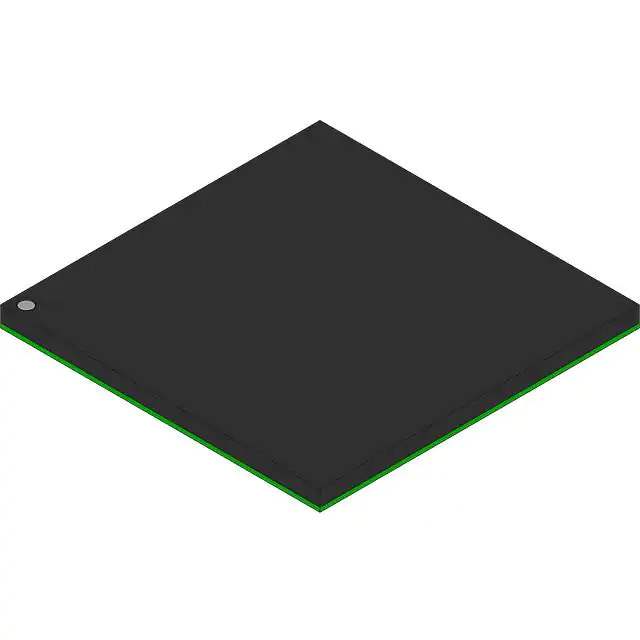

MPC860TZQ80D4 Real Image
Same model may have multiple batches, images only for reference.

MPC860TZQ80D4

Part No MPC860TZQ80D4
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU MPC86XX 80MHZ 357BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series MPC86xx
Package Bulk
Product Status Active
Core Processor MPC8xx
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 80MHz
Co-Processors/DSP Communications; CPM
RAM Controllers DRAM
Graphics Acceleration No
Ethernet 10Mbps (4), 10/100Mbps (1)
Voltage - I/O 3.3V
Temperature Range - Operating 0°C ~ 95°C (TJ)
Mounting Type Surface Mount
Package / Case 357-BBGA
Supplier Device Package 357-PBGA (25x25)
Additional Interfaces HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN 5A991B4B
HTSUS 8542.31.0001
Win Source Part Number 643767-MPC860TZQ80D4
Ultra Librarian 3D Model Ultra Librarian MPC860TZQ80D4 CAD Model

Description

The 643767-MPC860TZQ80D4 is an embedded microprocessor from the MPC86xx series.

  • Core Processor: MPC8xx
  • Speed: 80MHz
  • Number of Cores: 1
  • Bus Width: 32-bit
  • Features: communications co-processor
  • Interfaces: HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART
  • Ethernet Interfaces: 10Mbps and 10/100Mbps
  • Voltage Supply: 3.3V
  • Package: bulk
