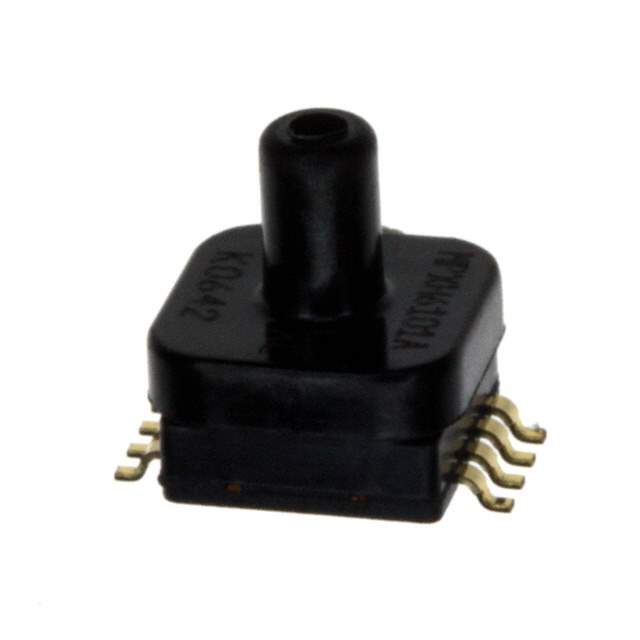

MPXHZ6250AC6T1 Real Image
Same model may have multiple batches, images only for reference.

MPXHZ6250AC6T1

Part No MPXHZ6250AC6T1
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE ABS AXIAL 8-SSOP
Datasheet
MPXHZ6250AC6T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Absolute
Operating Pressure 2.9 PSI to 36.26 PSI (20 kPa to 250 kPa)
Output Type Analog Voltage
Output 0.3 V to 4.9 V
Accuracy ±1.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.3mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 145.04 PSI (1000 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SSOP
Win Source Part Number 024329-MPXHZ6250AC6T1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MPXHZ6250A
Introduction Date July 29, 2005
ECCN EAR99
Country of Origin China, Philippines, Republic of Korea, Thailand
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MPXHZ6250AC6T1 CAD Model

Description

The NXP MPXHZ6250AC6T1 is a pressure sensor that is temperature compensated and has an analog voltage output of 0.3V to 4.9V.

  • Accuracy: ±1.5%
  • Operating Temperature: -40°C to 125°C
  • Pressure Type: Absolute
  • Pressure Range: 2.9 PSI to 36.26 PSI (20 kPa to 250 kPa)
  • Package: 8-SSOP
  • Suitable for: Automotive and industrial
