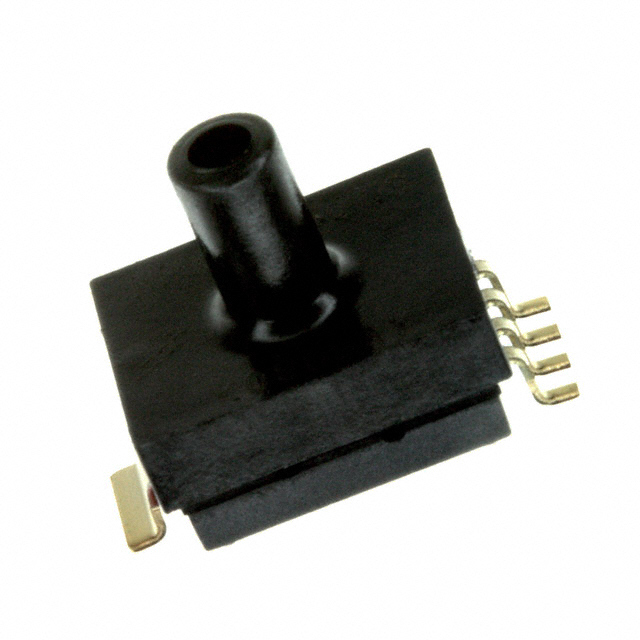

MPXM2010GST1 Freescale Semiconductor - NXP MPXM2010GST1 Real Image
Same model may have multiple batches, images only for reference.

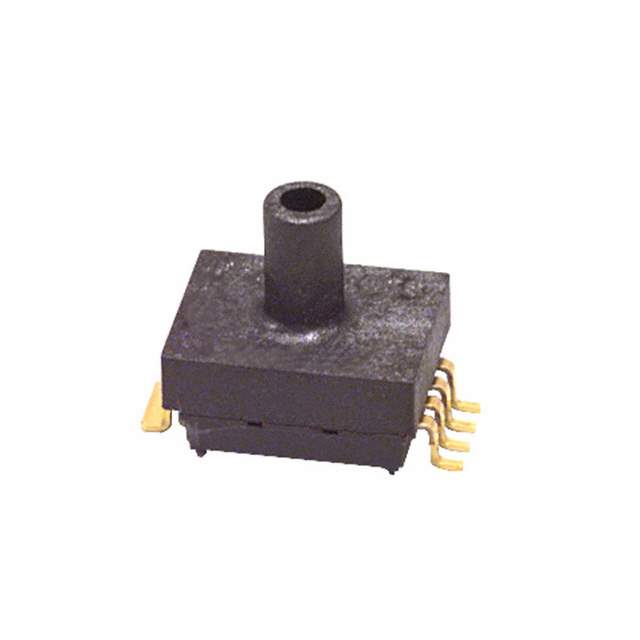

MPXM2010GST1 Freescale Semiconductor - NXP MPXM2010GST1 Real Image
MPXM2010GST1 Freescale Semiconductor - NXP MPXM2010GST1 Real Image
Same model may have multiple batches, images only for reference.

MPXM2010GST1

Part No MPXM2010GST1
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENS PRESSURE 1.45 PSI MAX 5MPAK
Datasheet
MPXM2010GST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Vented Gauge
Operating Pressure 1.45 PSI (10 kPa)
Output Type Wheatstone Bridge
Output 0 mV to 25 mV (10V)
Accuracy ±1%
Supply Voltage - Operating 10 V to 16 V
Port Size Male - 0.12" (2.97mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 10.88 PSI (75 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 5-MPAK
Win Source Part Number 114916-MPXM2010GST1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MPXM2010GST1 CAD Model

Description

It has a balanced supply and demand status and is commonly used in various electronic products.

  • Win Source Part Number: 114916
  • Feature: Temperature compensation
  • Pressure Type: Vented gauge
  • Operating Pressure: 1.45 PSI (10 kPa)
  • Maximum Pressure: 10.88 PSI (75 kPa)
  • Manufacturer Homepage: For more information, visit the manufacturer homepage.
