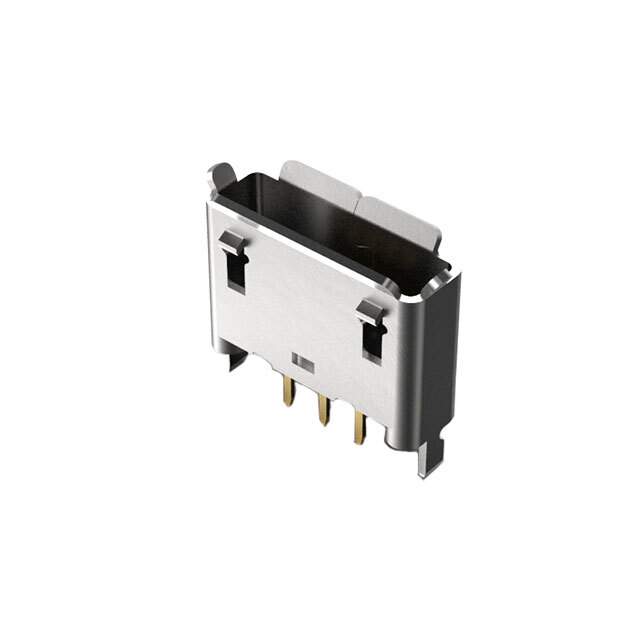

USB3105-30-A Real Image1 USB3105-30-A Real Image2
Same model may have multiple batches, images only for reference.
USB3105-30-A Real Image1 USB3105-30-A Real Image2
USB3105-30-A Real Image1 USB3105-30-A Real Image2
Same model may have multiple batches, images only for reference.

USB3105-30-A

Part No USB3105-30-A
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description MICRO A/B SKT, VERTICAL, TH, 30" / USB - micro AB USB 2.0 Receptacle Connector 5 Position Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Mfr GCT
Series USB3105
Package Tape & Reel
Connector Type USB - micro AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Features -
Ingress Protection -
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless (SUS)
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB3105
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,500 pcs
Win Source Part Number 1383808-USB3105-30-A
Ultra Librarian 3D Model Ultra Librarian USB3105-30-A CAD Model

Description

The 1383808-USB3105-30-A is a USB micro AB connector assembly designed for various applications. It features a vertical mounting feature and a shielded design, ensuring reliable and secure connectivity.

  • Mounting Feature: Vertical
  • Shielded: Yes
  • Number of Contacts: 5
  • USB Standard: USB 2.0
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Mounting Type: Through Hole
  • Manufacturer: GCT
