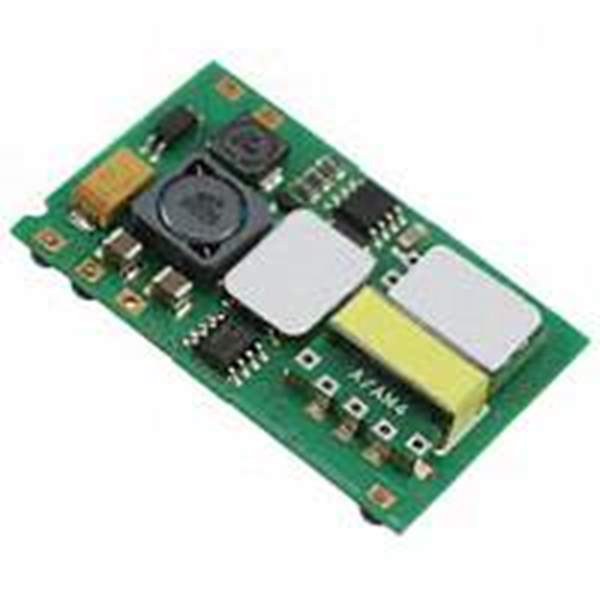

HW004A0A1-SZ

Part No HW004A0A1-SZ
Manufacturer GE Critical Power
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERTER DC/DC 5.0V 20W OUT SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer GE Critical Power
Series HW004
Packaging Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 4A
Power (Watts) - Manufacture Series 20W
Voltage - Isolation 2.25kV (2250V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Mounting Style SMD/SMT
Package 18-SMD Module (6 Leads)
Size / Dimension 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 89%
Power (Watts) - Max 20W
Win Source Part Number 136344-HW004A0A1-SZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HW004A0A1-SZ CAD Model

Description

The GE Critical Power HW004 series is a board mount DC-DC converter with an isolated module type and an SMD/SMT mounting style. This converter has a remote on/off feature, as well as overcurrent protection (OCP), over-temperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO). It operates at a temperature range of -40°C to 85°C and has a voltage isolation of 2.25kV. It has one output with a maximum current output of 4A and a voltage input range of 36V to 75V. The output voltage is 5V, and it has an efficiency of 89%. The package size is 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.5mm), and it is ideal for ITE (Commercial) applications. The HW004 series has a power of 20W and comes in an 18-SMD module (6 leads) package.
