Same model may have multiple batches, images only for reference.

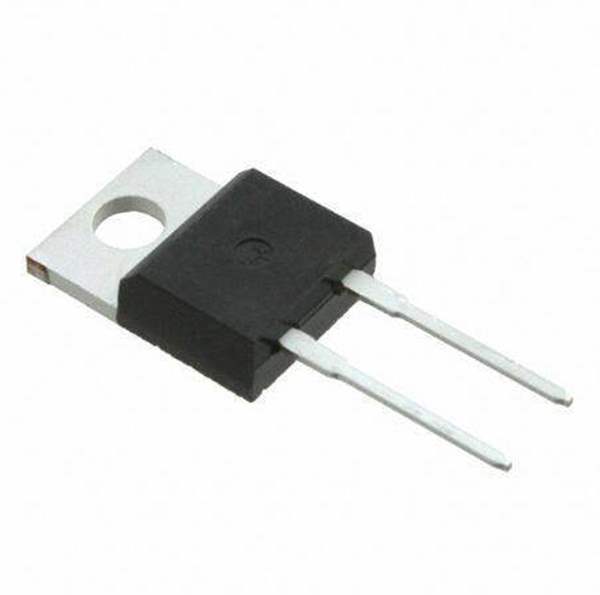

GC05MPS12-220 GeneSiC Semiconductor
Same model may have multiple batches, images only for reference.

GC05MPS12-220

Part No GC05MPS12-220
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARB 1.2KV 29A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer GeneSiC Semiconductor
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Part Status Obsolete
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 29A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 4 µA @ 1200 V
Capacitance @ Vr, F 359pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Win Source Part Number WS1305531-GC05MPS12-220
Ultra Librarian 3D Model Ultra Librarian GC05MPS12-220 CAD Model

Description

Features • Low V for High Temperature Operation • Enhanced Surge and Avalanche Robustness • Superior Figure of Merit Q /I • Low Thermal Resistance • Low Reverse Leakage Current • Temperature Independent Fast Switching • Positive Temperature Coefficient of V • High dV/dt Ruggedness<br />
