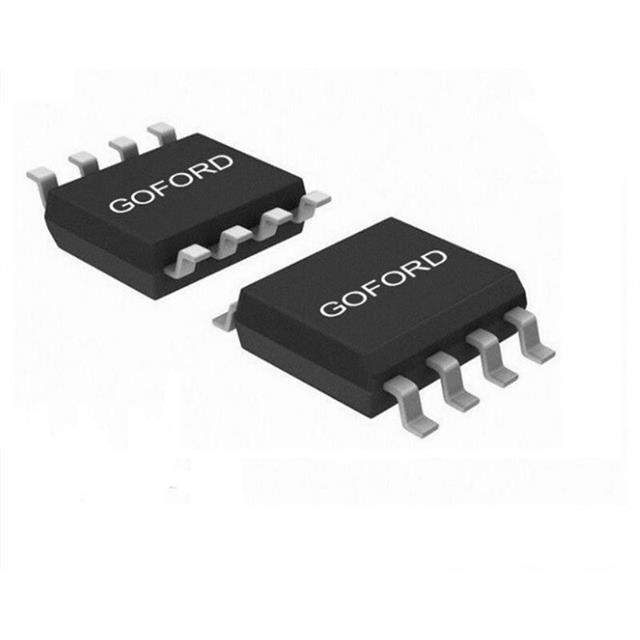

Same model may have multiple batches, images only for reference.

4435

Name: 4435
Brand: Goford Semiconductor
SKU: 546033
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	4435
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	P30V,RD(MAX)<20M@-10V,RD(MAX)<33
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Package	Tape & Reel
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11A
Rds On (Max) @ Id, Vgs	20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2270 pF @ 15 V
Power Dissipation (Max)	2.5W
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
Standard Package	4,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	546033-4435
Package	Cut Tape (CT)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20 mOhm @ 10A, 10V
Input Capacitance (Ciss) (Max) @ Vds	1818 pF @ 15 V
Power Dissipation (Max)	2.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Package / Case	8-SOIC (0.154\
Package	Bag
Type	Clip, Wire Saddle
Type Attributes	Micro, Standoff
Opening Size	0.440" L x 1.000" H (11.18mm x 25.40mm)
Mounting Type	Push In
Material	Polyamide (PA66), Nylon 6/6
Color	Natural
Length	0.220" (5.59mm)
Width	0.610" (15.49mm)
Height	1.400" (35.56mm)
Material Flammability Rating	UL94 V-2
Ultra Librarian 3D Model	Ultra Librarian 4435 CAD Model

Alternative Products

Description

The 546033-4435 is a P-Channel MOSFET transistor from Goford Semiconductor.

Drain to Source Voltage: 30V
Continuous Drain Current: 11A @ 25°C
Rds On: 20mOhm @ 10A and 10V
Gate-Source Threshold Voltage: 2.5V @ 250µA
Maximum Power Dissipation: 2.5W
Mounting: surface mountable
Package: 8-SOIC
Width: 3.90mm
Gate Charge: 40nC @ 10V
Input Capacitance: 2270pF @ 15V
Maximum Vgs: ±20V
Operating Temperature: -55°C to 150°C
MSL Level: 3 (168 hours)
REACH Status: unaffected
Status: active
HTSUS Code: 8541.29.0095
