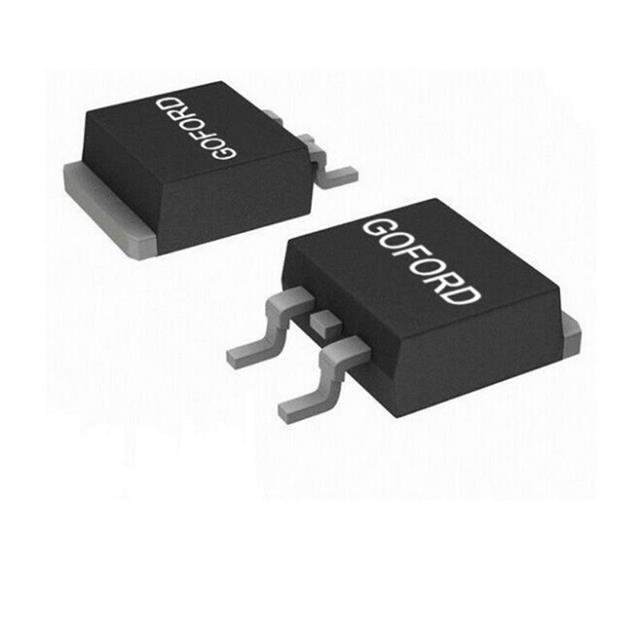

Same model may have multiple batches, images only for reference.

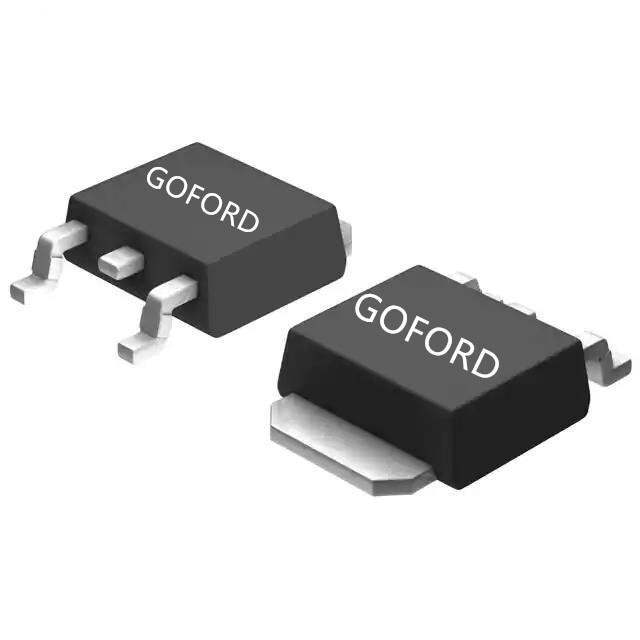

60N06

Name: 60N06
Brand: Goford Semiconductor
SKU: 1377542
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	60N06
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N60V,RD(MAX)<17M@10V,RD(MAX)<21M
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	50A
Rds On (Max) @ Id, Vgs	17mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2050 pF @ 30 V
Power Dissipation (Max)	85W
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (DPAK)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1377542-60N06
Package	Cut Tape (CT)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2315 pF @ 30 V
Power Dissipation (Max)	69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	TO-252
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Ultra Librarian 3D Model	Ultra Librarian 60N06 CAD Model

Alternative Products

Description

The 60N06 is a N-Channel MOSFET transistor from Goford Semiconductor. Goford Semiconductor manufactures the 60N06.

Channel Type: N-Channel
Package/Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Drain to Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 50A @ 25°C
On-Resistance (Rds On): 17mOhm @ 5A and 10V
Gate Threshold Voltage (Vgs(th)): 2V @ 250µA
Gate Charge (Qg): 50nC @ 10V
Gate Voltage Swing (Vgs): ±20V
Input Capacitance (Ciss): 2050pF @ 30V
