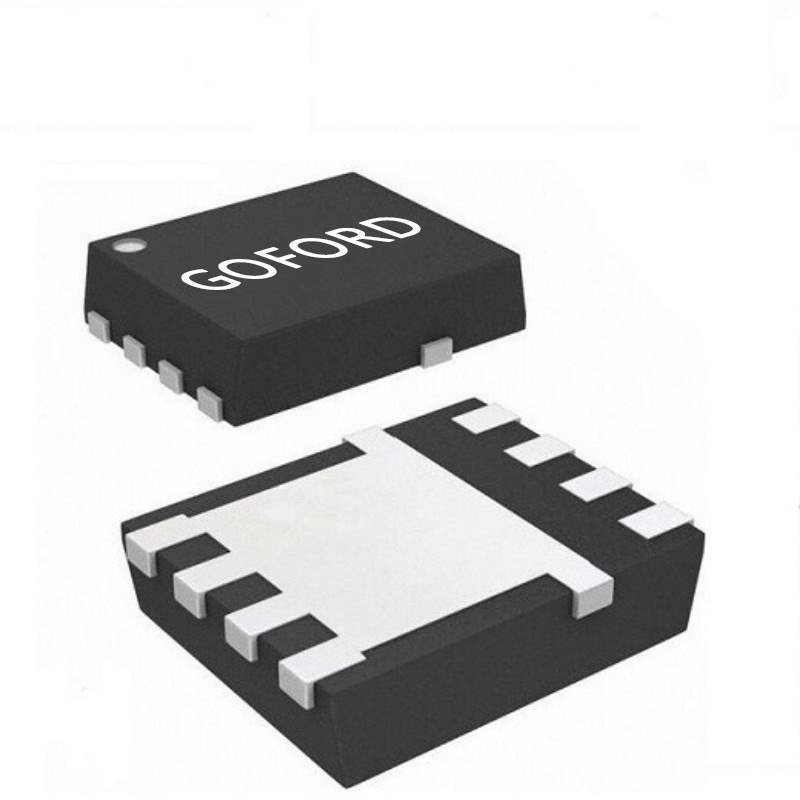

Same model may have multiple batches, images only for reference.

GT095N10D5

Name: GT095N10D5
Brand: Goford Semiconductor
SKU: 1376858
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	GT095N10D5
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N100V,RD(MAX)<11M@10V,RD(MAX)<15
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11mOhm @ 35A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	54 nC @ 10 V
Vgs (Max)	±20V
FET Feature	-
Power Dissipation (Max)	74W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (5x6)
Package / Case	8-PowerTDFN
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376858-GT095N10D5
Ultra Librarian 3D Model	Ultra Librarian GT095N10D5 CAD Model

Alternative Products

Description

The GT095N10D5 is a single N-channel MOSFET transistor manufactured by Goford Semiconductor.

Package: 8-PowerTDFN
Mounting Type: Surface Mount
Drain to Source Voltage (Vdss): 100V
Continuous Drain Current (Id) @ 25°C: 55A
Drive Voltage (Max Rds On): 4.5V
Drive Voltage (Min Rds On): 10V
Rds On: 11mOhm @ 35A, 10V
Gate Threshold Voltage (Vgs(th)): 2.5V @ 250μA
Gate Charge (Qg) @ 10V: 54nC
Maximum Vgs: ±20V
