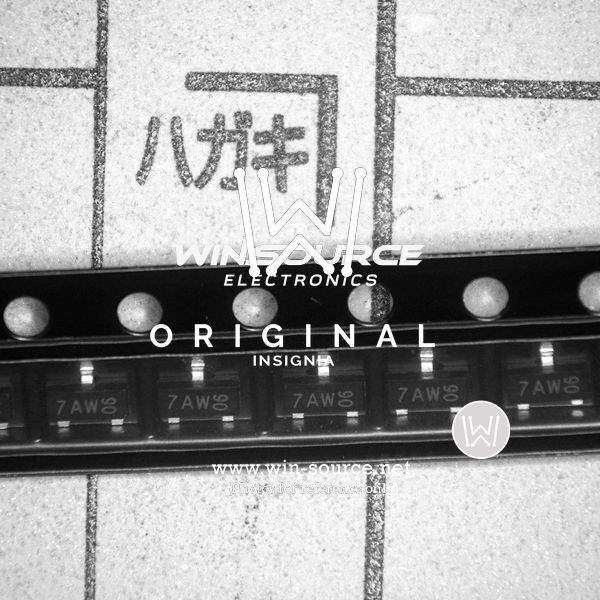

BAS70-04

Part No BAS70-04
Manufacturer GOOD-ARK Electronics
Catalog Diodes, Rectifiers - Arrays
Description DIODE, SCHOTTKY, DUAL SERIES, 70 / Diode Array 1 Pair Series Connection 70 V 70mA Surface Mount TO-236-3, SC-59, SOT-23-3
Datasheet
BAS70-04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr GOOD-ARK Electronics
Series BAS70
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Series Connection
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 70mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 100 nA @ 50 V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 568758-BAS70-04
Ultra Librarian 3D Model Ultra Librarian BAS70-04 CAD Model

Description

The 568758-BAS70-04 is a diode array from the BAS70 series.

  • Type: Small Signal Diode
  • Voltage Rating: 70V
  • Forward Voltage: 1V @ 15 mA
  • Mount Type: Surface Mount
  • Reverse Recovery Time: 5 ns
  • Reverse Leakage Current: 100 nA @ 50V
  • Diode Array Configuration: 1 Pair Series
  • Package: TO-236-3 (SC-59, SOT-23-3)
  • Standard Package: 3,000 pcs
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: GOOD-ARK Electronics
  • Product Status: Active
