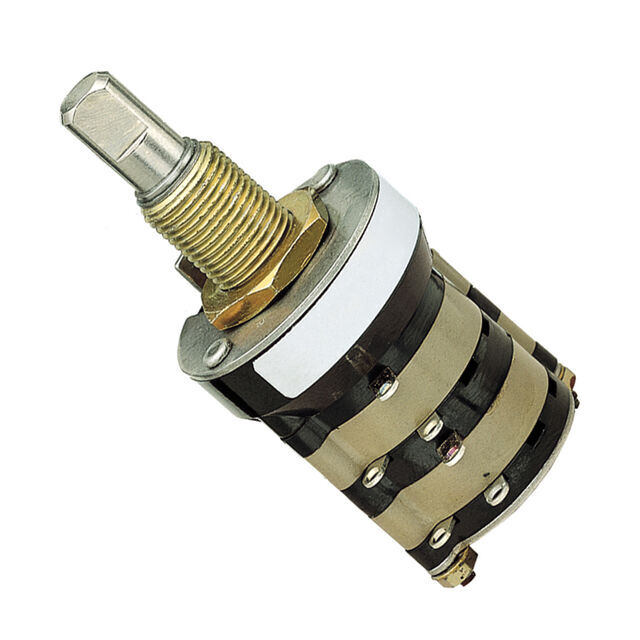

Same model may have multiple batches, images only for reference.
44M60-01-1-02N Grayhill Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

44M60-01-1-02N

Part No 44M60-01-1-02N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2POS 5A 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesRotary Switches
Manufacturer Grayhill Inc.
Series 44
Packaging Bulk
Part Status Active
Number of Positions 2
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SPDT
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 5A (AC), 1A (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 11.10mm
Angle of Throw 60°
Contact Material Silver Alloy
Mounting Type Panel Mount
Termination Style Solder Lug
Depth Behind Panel 26.04mm
Base Product Number 44M60
Ultra Librarian 3D Model Ultra Librarian 44M60-01-1-02N CAD Model
