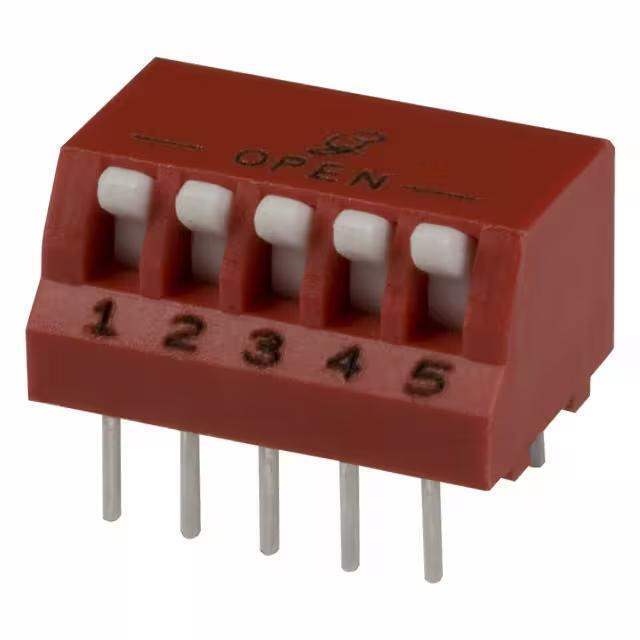

76PSB05ST Grayhill Inc.
Same model may have multiple batches, images only for reference.

76PSB05ST

Part No 76PSB05ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 150MA 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168633-76PSB05ST
Manufacturer Grayhill Inc.
Category Switches -DIP Switches
Series 76
Package 76 Tube
Product Status Active
Base Product Number 76PSB
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole, Right Angle
Pitch 0.100" (2.54mm), Full
Features Tape Seal
Ultra Librarian 3D Model Ultra Librarian 76PSB05ST CAD Model

Description

The Grayhill Inc. 76PSB is a DIP switch with a pitch of 0.100" (2.54mm).

  • Pitch: 0.100" (2.54mm)
  • Seal: Tape
  • Packaging: Tube
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Through Hole, Right Angle
  • Status: Active
