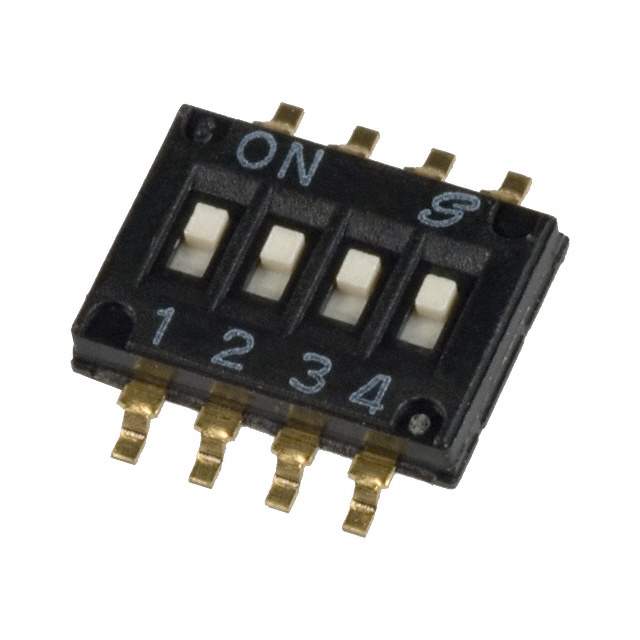

97C04ST Real Image
Same model may have multiple batches, images only for reference.

97C04ST

Part No 97C04ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
97C04ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 4
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyamide (PA), Nylon
Length 0.248" (6.31mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Win Source Part Number 052138-97C04ST
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 97C04ST CAD Model

Description

97C04ST

Designed for cutting-edge applications, the 97C04ST is a versatile component that offers precise functionality and integration ease, meeting the demands of high-performance electronic systems.

  • Applications:
    • Robotics
    • Data processing units
    • Medical instrumentation
  • Features:
    • Enhanced data handling capability
    • Optimized for fast processing speeds
    • Robust architectural design
  • Benefits:
    • Facilitates faster data processing
    • Improves application performance
    • Ensures ease of maintenance
  • Additional Details:
    • Meets international standards
    • Backed by technical support and warranty
