Same model may have multiple batches, images only for reference.

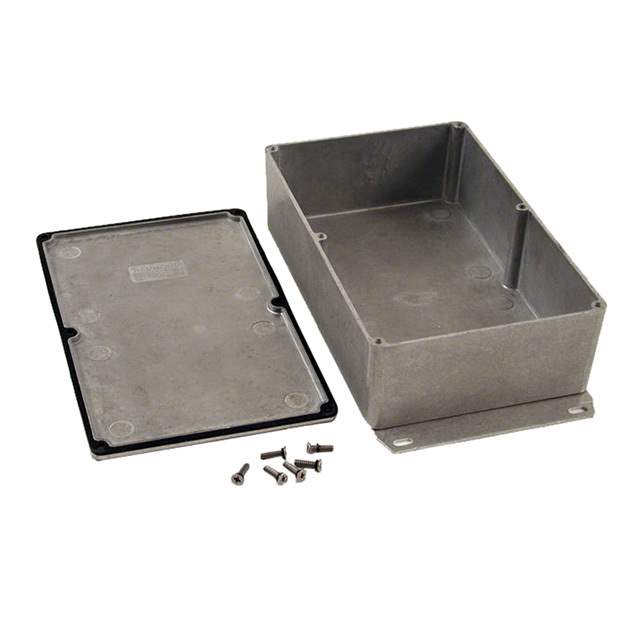

1590WDF Real Image
Same model may have multiple batches, images only for reference.

1590WDF

Part No 1590WDF
Manufacturer Hammond Manufacturing
Catalog Boxes
Description BOX ALUM UNPTD 7.402"L X 4.724"W / Box Metal, Aluminum Unpainted Cover Included 7.402" L x 4.724" W (188.01mm x 119.99mm) X 2.273" (57.73mm)
Datasheet
1590WDF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hammond Manufacturing
Series 1590WF
Package Bulk
Container Type Box
Size / Dimension 7.402" L x 4.724" W (188.01mm x 119.99mm)
Height 2.273" (57.73mm)
Area (L x W) 35.0in² (226cm²)
Design Cover Included
Material Metal, Aluminum
Color Unpainted
Thickness 0.080" (2.03mm)
Features Mounting Flange, Watertight
Ratings IP65
Material Flammability Rating -
Weight 1.4 lbs (635 g)
Base Product Number 1590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7612.90.1090
Standard Package 1 pcs
Win Source Part Number 1382241-1590WDF
Ultra Librarian 3D Model Ultra Librarian 1590WDF CAD Model

Description

The 1590WDF is an unpainted box enclosure from the 1590WF series by Hammond Manufacturing.

  • Mounting Type: Flange
  • Watertight: IP65
  • Size: 7.402" L x 4.724" W (188.01mm x 119.99mm)
  • Thickness: 0.080" (2.03mm)
  • Height: 2.273" (57.73mm)
  • Material: Metal (Aluminum)
  • Design: Includes Cover
  • Weight: 1.4 lbs (635 g)
  • Standard Package: 1 pcs
