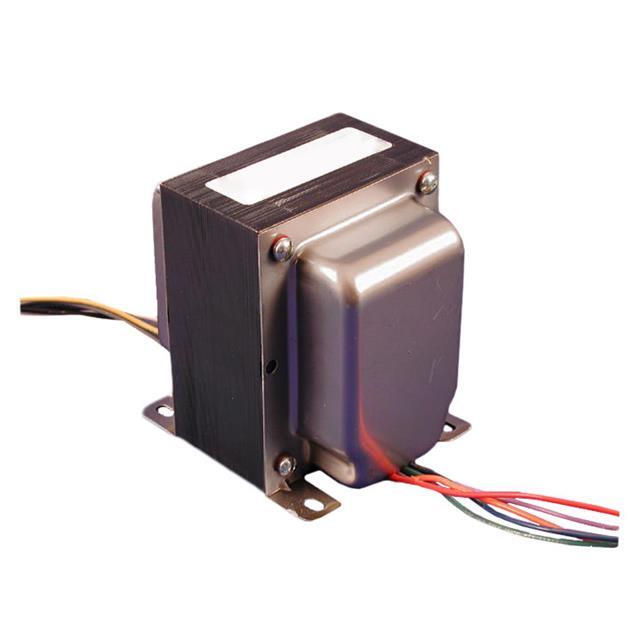

274AX

Part No 274AX
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 137VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 117V
Voltage - Secondary (Full Load) 720V, 6.3V, 5V
Current - Output (Max) 138mA, 3.5A, 3A
Primary Winding(s) Single
Secondary Winding(s) Triple
Center Tap Yes
Power - Max 137VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 79.50mm L x 88.90mm W
Height - Seated (Max) 98.55mm
Voltage - Isolation 2000Vrms
Weight 5.7 lbs (2.6 kg)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545994-274AX
Ultra Librarian 3D Model Ultra Librarian 274AX CAD Model
