Same model may have multiple batches, images only for reference.

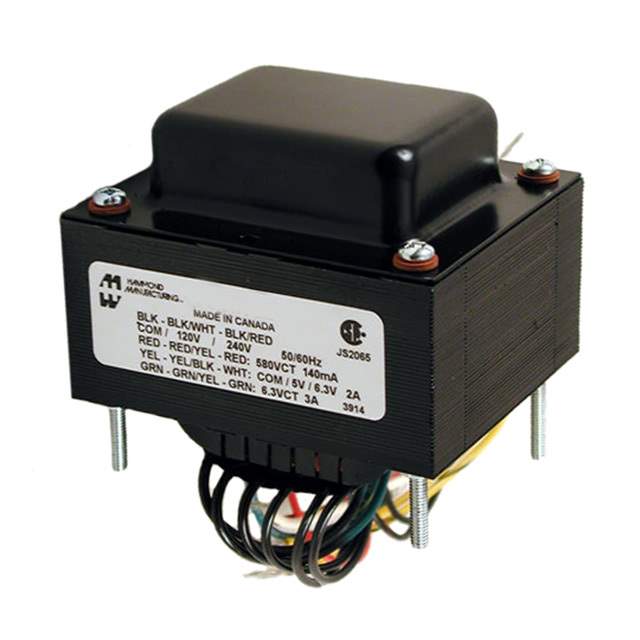

291BX Real Image
Same model may have multiple batches, images only for reference.

291BX

Part No 291BX
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED CHAS MT  /
Datasheet
291BX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Hammond Manufacturing
Series 291
Package Box
Type Laminated Core
Voltage - Primary 120V
Voltage - Secondary (Full Load) 660V, 6V, 5V
Current - Output (Max) 138mA, 3A, 3A
Primary Winding(s) Single
Secondary Winding(s) Triple
Center Tap Yes
Mounting Type Chassis Mount
Termination Style Wire Leads
Dimension 71.45mm L x 103.20mm W
Height - Seated (Max) 87.33mm
Weight 5.4 lbs (2.4 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names HM5058,291BX-ND
Standard Package 1
Win Source Part Number 1041612-291BX
Ultra Librarian 3D Model Ultra Librarian 291BX CAD Model

Description

The 291BX is a power transformer manufactured by Hammond Manufacturing.

  • Core: laminated
  • Termination: wire leads
  • Power Output: maximum power output
  • Weight: 5.4 lbs
  • Voltage Isolation: Yes
  • Primary Voltage: 120V
  • Primary Winding: single
  • Secondary Winding: triple with a center tap
