Same model may have multiple batches, images only for reference.

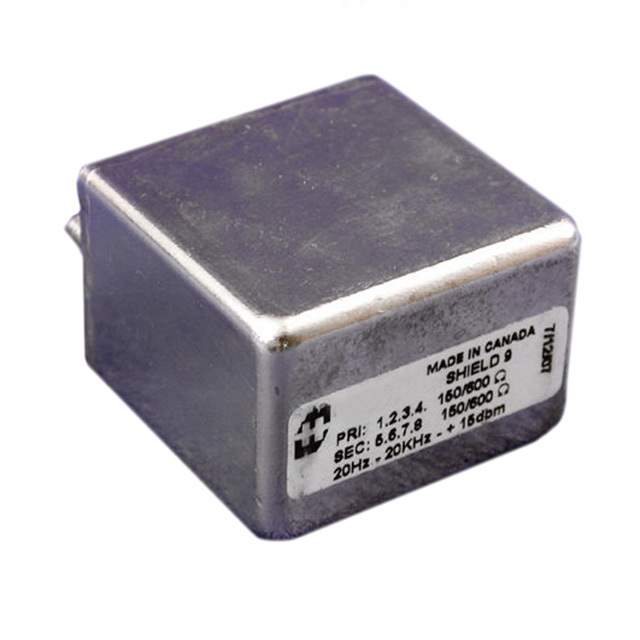

850J Real Image
Same model may have multiple batches, images only for reference.

850J

Part No 850J
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description TRAN AUDIO 150/600 1.2K/4.8K IMP
Datasheet
850J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Hammond Manufacturing
Packaging Bulk
Status Active
Impedance - Primary (Ohms) 600, 150/150
Impedance - Secondary (Ohms) 4.8k, 1.2k/1.2k
DC Resistance (DCR) - Primary 69 Ohm
DC Resistance (DCR) - Secondary 570 Ohm
Transformer Type Broadcast Quality
Frequency Range 20Hz to 20kHz
Frequency Response ±0.5dB
Insertion Loss 1dB
Power Level 15dB
Mounting Chassis Mount
Height - Seated (Max) 1.650" (41.91mm)
Termination Style Solder Lug
Weight 0.4 lb (181.44g)
Win Source Part Number 1021881-850J
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 850J CAD Model

Description

The Hammond Manufacturing Broadcast Quality Transformer is a chassis mount transformer with a frequency range of 20Hz to 20kHz and an insertion loss of 1dB.

  • Primary Impedance: 600, 150/150 Ohms
  • Secondary Impedance: 4.8k, 1.2k/1.2k Ohms
  • Primary DC Resistance (DCR): 69 Ohm
  • Secondary DC Resistance (DCR): 570 Ohm
  • Power Level: 15dB
  • Frequency Response: ±0.5dB
  • Height - Seated (Max): 1.650" (41.91mm)
  • ECCN: EAR99 compliant
  • Supply and Demand Status: Sufficient
  • Packaging: Bulk
  • Termination Style: Solder Lug
