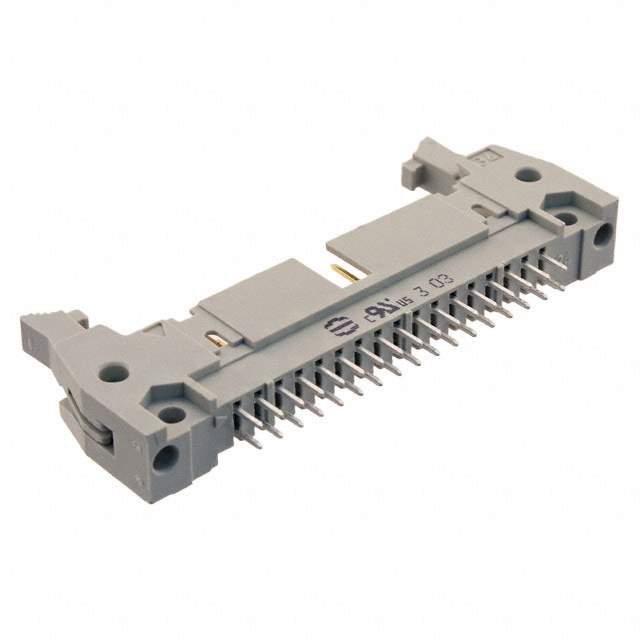

09185347904 Real Image1 09185347904 Real Image2
Same model may have multiple batches, images only for reference.
09185347904 Real Image1 09185347904 Real Image2
09185347904 Real Image1 09185347904 Real Image2
Same model may have multiple batches, images only for reference.

09185347904

Part No 09185347904
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN HEADER VERT 34POS 2.54MM / Connector Header Through Hole 34 position 0.100" (2.54mm)
Datasheet
09185347904 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr HARTING
Series SEK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.681" (17.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1381243-09185347904
Ultra Librarian 3D Model Ultra Librarian 09185347904 CAD Model

Description

The SEK series header male pins connector is a reliable connector designed for various applications.

  • Positions: 34
  • Keying Slot: Yes
  • Mounting Flange: Yes
  • Connector Type: Header with Male Pins
  • All Positions Loaded: Yes
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Style: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Contact Finish (Mating): Gold
  • Insulation Color: Gray
  • Mounting: Through Hole
  • Shrouded: 4 Wall
  • Row Spacing (Mating): 0.100" (2.54mm)
  • Overall Contact Length: 0.650" (16.51mm)
  • Insulation Height: 0.681" (17.30mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Contact Length (Mating): 0.228" (5.80mm)
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Manufacturer: HARTING
