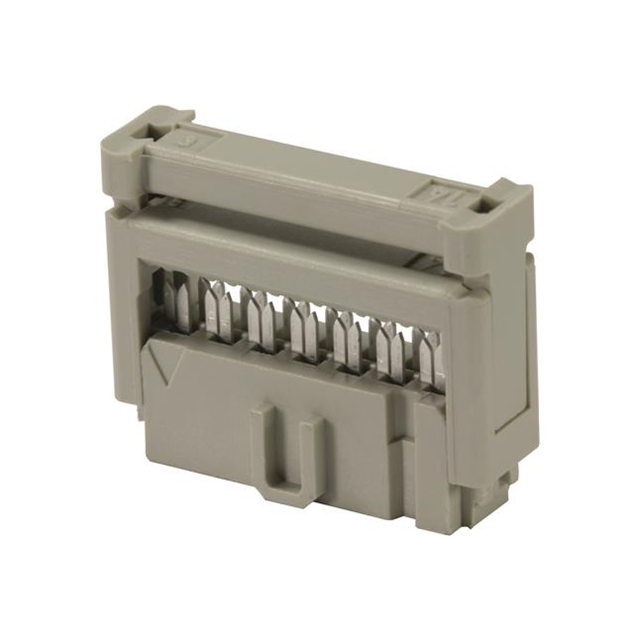

Part No 09185205814
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN RCPT 20P IDC 26-28AWG GOLD / 20 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
Datasheet
09185205814 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer HARTING
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Closed End, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 100
Win Source Part Number 1333102-09185205814
Ultra Librarian 3D Model Ultra Librarian 09185205814 CAD Model

Description

The HARTING 1333102-09185205814 is a rectangular connector with a closed end, polarizing key, and strain relief.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Rows: Two
  • Row Spacing: 0.100 inches
  • Positions: 20
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin
  • Wire Gauge: 26-28 AWG
  • Wire Type: Ribbon Cable
  • Supply and Demand Status: Balanced
