Same model may have multiple batches, images only for reference.

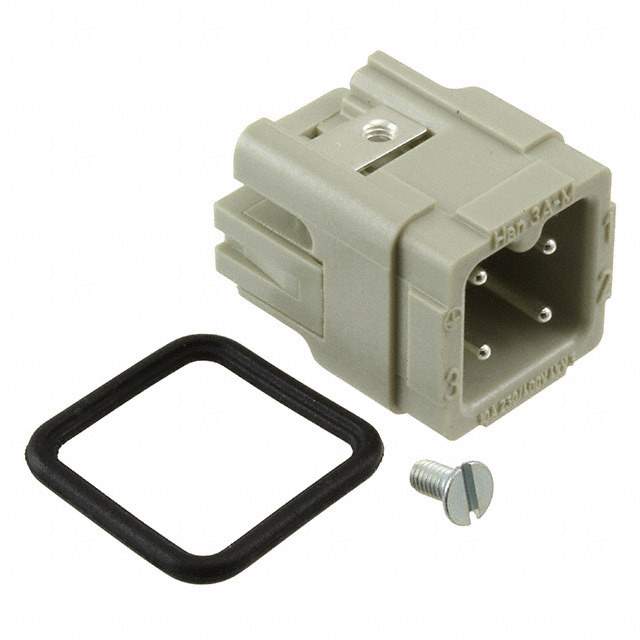

09200032611 Real Image
Same model may have multiple batches, images only for reference.

09200032611

Part No 09200032611
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description INSERT MALE 3POS+1GND SCREW / Male Insert Gray 3+Ground Position Screw
Datasheet
09200032611 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® A
Package Bulk
Connector Type Insert
Gender Male
Number of Positions 3+Ground
Size 3A
Termination Style Screw
Voltage Rating 600V
Current Rating (Amps) 10A
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V-0
Base Product Number 09200032
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351523-09200032611
Ultra Librarian 3D Model Ultra Librarian 09200032611 CAD Model

Description

The 09200032611 heavy-duty connector insert is a part of the Han® A series.

  • Color: Gray
  • Gender: Male
  • Connector Type: Insert
  • Termination Style: Screw
  • Number of Positions: 3+Ground
  • Voltage Rating: 600V
  • Current Rating: 10A
  • Operating Temperature: -40°C to 125°C
  • Packaging: Bulk
  • Manufacturer: HARTING
