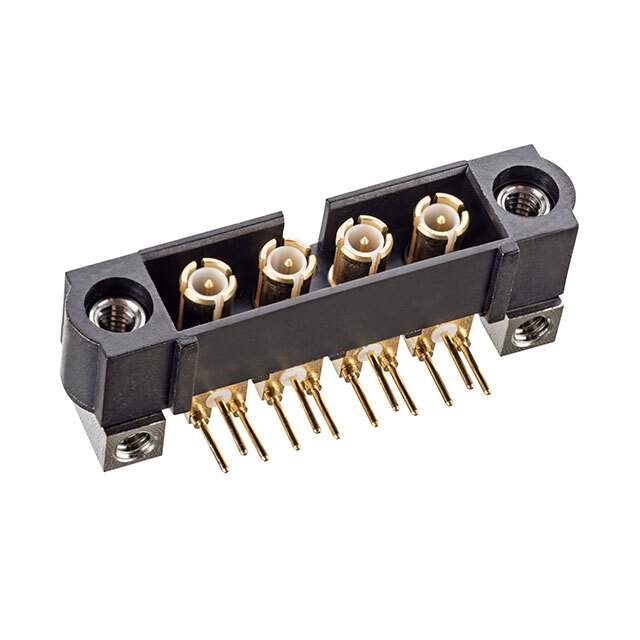

Same model may have multiple batches, images only for reference.

M80-MH313M5-04

Name: M80-MH313M5-04
Brand: Harwin Inc.
SKU: 1349281
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-MH313M5-04
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 4MM / Connector Header Through Hole, Right Angle 4 (Coax) position 0.157" (4.00mm)
Datasheet	M80-MH313M5-04 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate Coax
Package	Tube
Connector Type	Header
Contact Type	Male Pin, Coaxial
Pitch - Mating	0.157" (4.00mm)
Number of Positions	4 (Coax)
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Threaded
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Mating Flange, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	M80-MH3
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349281-M80-MH313M5-04
Ultra Librarian 3D Model	Ultra Librarian M80-MH313M5-04 CAD Model

Alternative Products

Description

The Datamate Coax Male Pin Headers from Harwin Inc. are a great choice for your electronic projects.

Features: Mating Flange, Mounting Flange
Fastening Type: Threaded
Style: Shrouded - 4 Wall
Application: Board to Board or Cable
Pitch - Mating: 0.157" (4.00mm)
All Positions Loaded: Yes
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -55°C ~ 125°C
RoHS: Compliant
