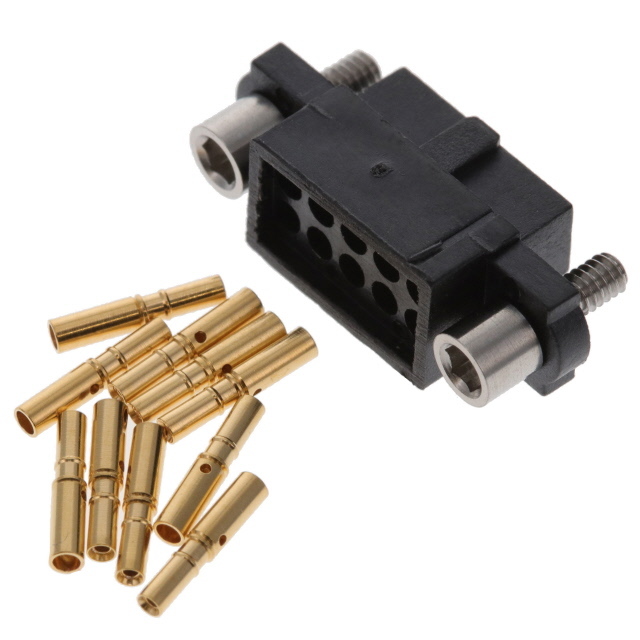

M80-6811245P Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M80-6811245P

Part No M80-6811245P
Manufacturer Harwin Inc.
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description DATAMATE L-TEK DIL FEMALE VERTIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12.0µin (0.30µm)
Insulation Color Black
Insulation Height 0.220" (5.60mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Mated Stacking Heights 7.85mm, 8.45mm
Features Pick and Place
Voltage Rating 120V
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1628266-M80-6811245P
Ultra Librarian 3D Model Ultra Librarian M80-6811245P CAD Model
