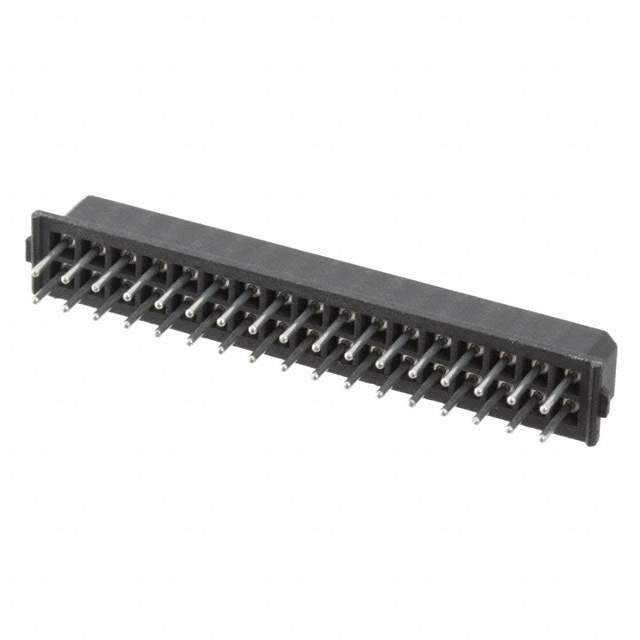

M80-8503442 Real Image
Same model may have multiple batches, images only for reference.

M80-8503442

Part No M80-8503442
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 34POS 0.079 GOLD PCB
Datasheet
M80-8503442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features 34 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Manufacturer Harwin Inc.
Series Datamate L-Tek
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name M80-850
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number M808503442, 952-2090
Quantity per package 6
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924989-M80-8503442
Ultra Librarian 3D Model Ultra Librarian M80-8503442 CAD Model

Description

The 924989-M80-8503442 from Harwin Inc. is a 34-position receptacle connector that is part of the Datamate L-Tek series.

  • Positions: 34
  • Series: Datamate L-Tek
  • Feature: Gold-plated through-hole
  • Diameter: 0.079" (2.00mm)
  • Operating Temperature: -55°C to 125°C
  • Package: Tube
  • Family Name: M80-850
  • Supply and Demand Status: Balanced
  • Packages of: 6
  • Estimated Production Lead Time: 14 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Other part numbers: M808503442 and 952-2090
