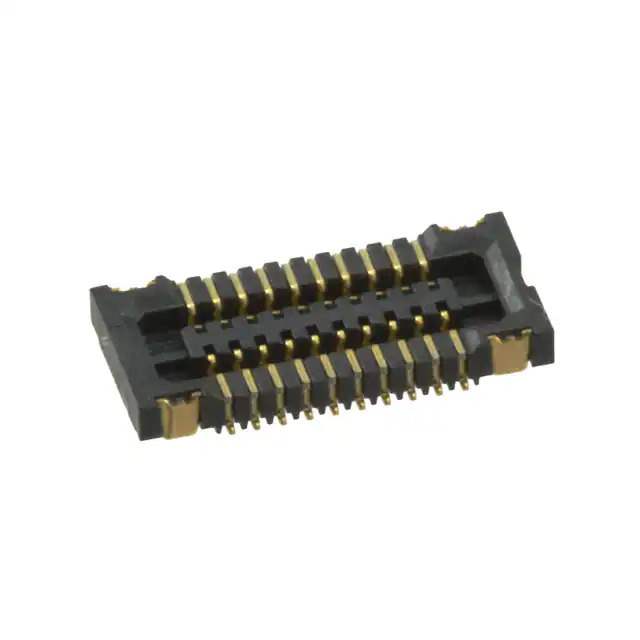

BM20B(0.8)-20DS-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

BM20B(0.8)-20DS-0.4V(51)

Part No BM20B(0.8)-20DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
BM20B(0.8)-20DS-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM20
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.031" (0.80mm)
Base Product Number BM20B
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849672-BM20B(0.8)-20DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-20DS-0.4V(51) CAD Model

Description

The 849672-BM20B(0.8)-20DS-0.4V(51) is a rectangular connector array from the BM20 series by Hirose Electric Co Ltd.

  • Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Type: Receptacle, Center Strip Contacts
  • Rows: 2
  • Contact Finish: Gold, 2.00μin (0.051μm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.031" (0.80mm)
  • Package: Tape & Reel, 8,000 pcs
  • Feature: Solder Retention
