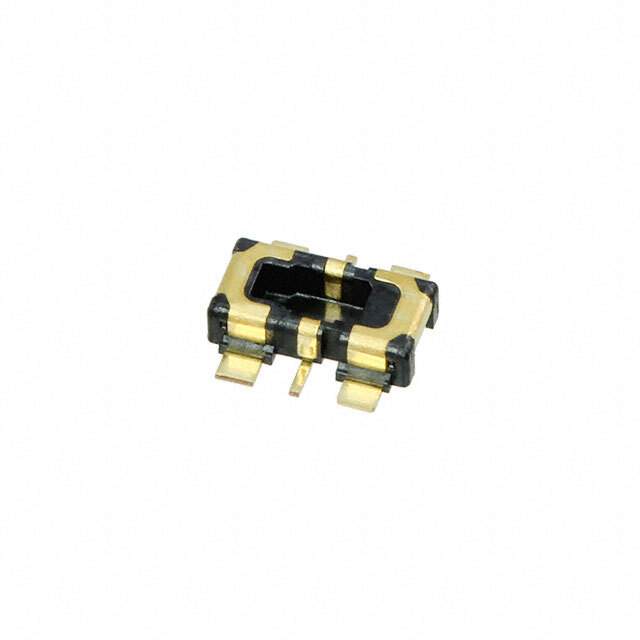

BM22L-4P-V(53) Real Image
Same model may have multiple batches, images only for reference.

BM22L-4P-V(53)

Part No BM22L-4P-V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 4POS SMD / Conn Wire to Board PL 4 POS Solder ST Top Entry SMD T/R
Datasheet
BM22L-4P-V(53) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series BM22
Packaging Reel package
Connector Type Header
Contact Type Outer Shroud Contact
Style Board to Board
Shrouding Shrouded - 4 Wall
Number of Positions 4 (2 + 2 Power)
Number of Positions Loaded All
Mounting SMD
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.030" (0.75mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 2μin (0.05μm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 50V
Mated Stacking Heights 0.9mm
Contact Finish Thickness - Post Flash
Win Source Part Number 770250-BM22L-4P-V(53)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name BM22L
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BM22L-4P-V(53) CAD Model

Description

The Hirose Electric Co Ltd 770250-BM22L-4P-V(53) is a 4-position header connector that is ideal for use in a wide range of electronic devices.

  • Voltage Rating: 50V
  • Package: Reel package of 1k pcs
  • Supply and Demand Status: Limited
  • Series: BM22L
