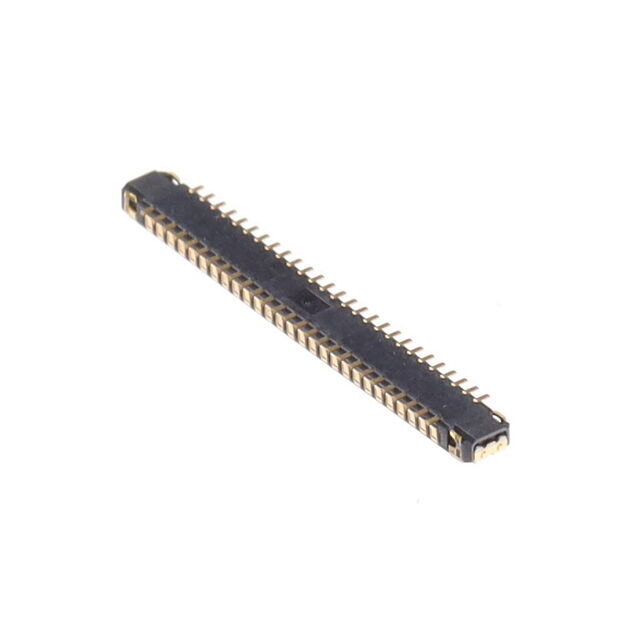

Same model may have multiple batches, images only for reference.

BM23PF0.8-54DP-0.35V(51)

Name: BM23PF0.8-54DP-0.35V(51)
Brand: Hirose Electric Co Ltd
SKU: 1478716
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BM23PF0.8-54DP-0.35V(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	54 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Hirose Electric Co Ltd
Series	BM23
Packaging	Reel - TR
Connector Type	Header, Outer Shroud Contacts
Number of Positions	54
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	1.97µin (0.050µm)
Mated Stacking Heights	0.8mm
Height Above Board	0.025" (0.63mm)
Base Product Number	BM23PF0.8
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1478716-BM23PF0.8-54DP-0.35V(51)
Ultra Librarian 3D Model	Ultra Librarian BM23PF0.8-54DP-0.35V(51) CAD Model
