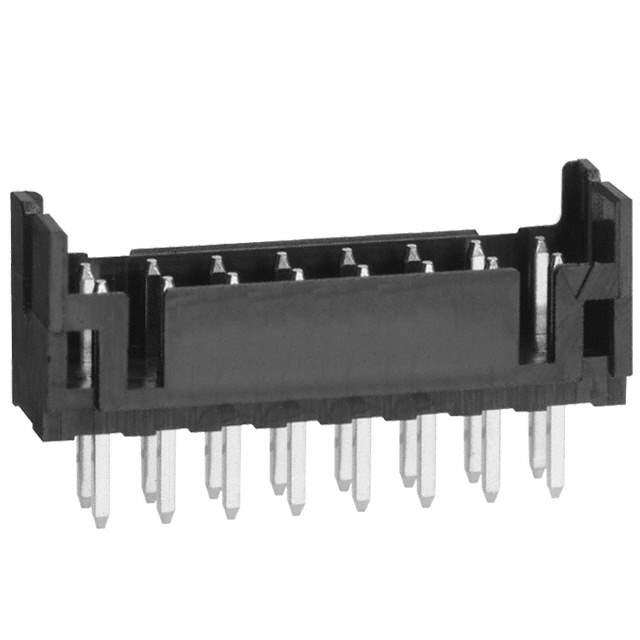

Same model may have multiple batches, images only for reference.

DF11-16DP-2DSA(24)

Name: DF11-16DP-2DSA(24)
Brand: Hirose Electric Co Ltd
SKU: 916898
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF11-16DP-2DSA(24)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2MM
Datasheet	DF11-16DP-2DSA(24) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	26 Weeks
Features	Connector Header Through Hole 16 position 0.079" (2.00mm)
Manufacturer	Hirose Electric Co Ltd
Series	DF11
Package	Tube
Operating Temperature Range	-30°C ~ 85°C
Mounting	Through Hole
Family Name	DF11
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	543-0523-8-24, *DF11-16DP-2DSA(24), H10235, DF1116DP2DSA24
Quantity per package	27
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	916898-DF11-16DP-2DSA(24)
Ultra Librarian 3D Model	Ultra Librarian DF11-16DP-2DSA(24) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF11 series connector header is a through-hole type connector with 16 positions and a pitch of 0.079 inches (2.00mm).

Connector Type: Connector Header
Mounting Type: Through-Hole
Positions: 16
Pitch: 0.079 inches (2.00mm)
Operating Temperature Range: -30°C to 85°C
Popularity: High
Supply and Demand Status: Balance
Estimated Production Lead Time: 26 weeks
Package Type: Tube
ECCN: EAR99
Package Quantity: 27
Series: DF11
