Same model may have multiple batches, images only for reference.

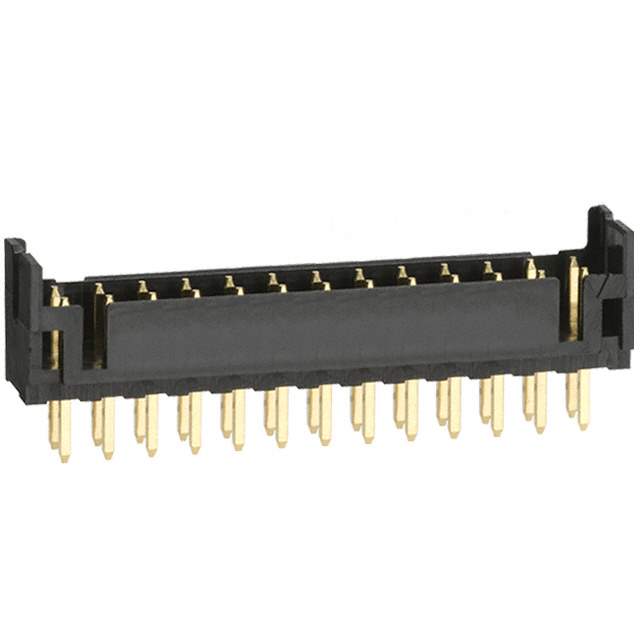

DF11-26DP-2DSA(01) Real Image
Same model may have multiple batches, images only for reference.

DF11-26DP-2DSA(01)

Part No DF11-26DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2MM
Datasheet
DF11-26DP-2DSA(01) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features Connector Header Through Hole 26 position 0.079" (2.00mm)
Manufacturer Hirose Electric Co Ltd
Series DF11
Package Bulk
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF11-26DP2DSA(01)-ND, DF11-26DP2DSA(01), DF1126DP2DSA01, H2861, *DF11-26DP-2DSA (01), 543-0528-1-01
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916907-DF11-26DP-2DSA(01)
Ultra Librarian 3D Model Ultra Librarian DF11-26DP-2DSA(01) CAD Model

Description

The DF11-26DP-2DSA(01) is a 26 position connector header through hole manufactured by Hirose Electric Co Ltd.

  • Positions: 26
  • Type: Connector Header Through Hole
  • Manufacturer: Hirose Electric Co Ltd
  • Operating Temperature Range: -30°C ~ 85°C
  • Pitch: 0.079" (2.00mm)
  • Supply and Demand Status: Balanced
  • Quantity per Package: 100
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8536.69.4040
