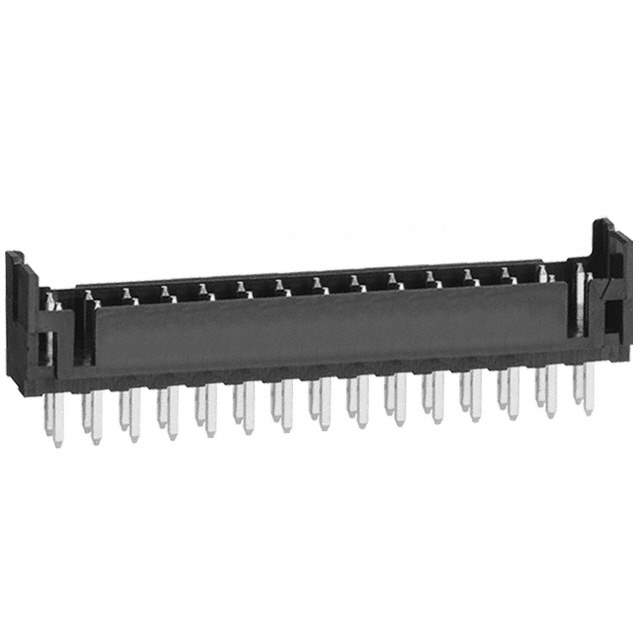

DF11-30DP-2DSA(24)

Name: DF11-30DP-2DSA(24)
Brand: Hirose Electric Co Ltd
SKU: 772557
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF11-30DP-2DSA(24)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER 30POS 2MM PCB TIN / Conn Shrouded Header (4 Sides) HDR 30 POS 2mm Solder ST Thru-Hole Tube
Datasheet	DF11-30DP-2DSA(24) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	DF11
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.299" (7.60mm)
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39μin (1.00μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Operating Temperature Range	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2A
Voltage Rating	250V
Mated Stacking Heights	7.55, 7.8mm, 8.9mm
Win Source Part Number	772557-DF11-30DP-2DSA(24)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	15
Family Name	DF11
Introduction Date	January 20, 1999
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DF11-30DP-2DSA(24) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 772557-DF11-30DP-2DSA(24) is a header connector.

Packaging: Tube
Positions: 30
Mounting Style: Through Hole
Connector Type: Male Pin
All Positions Loaded: Yes
Rows: 2
Termination: Solder
Fastening Type: Detent Lock
Shrouding: Shrouded - 4 Walls
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating: Tin
Contact Finish Thickness-Mating: 39μin (1.00μm)
Insulation Material: Polyamide (PA), Nylon
Operating Temperature Range: -30°C ~ 85°C
Applications: Board to Board or Cable
