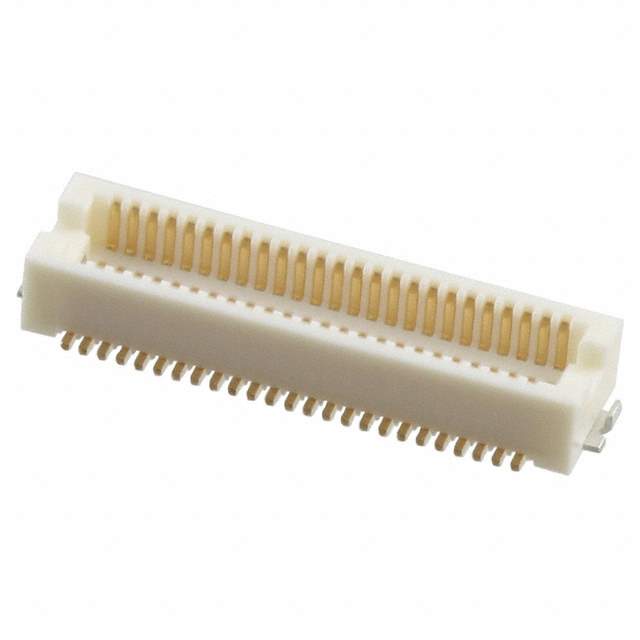

DF12D(3.0)-50DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12D(3.0)-50DP-0.5V(81)

Part No DF12D(3.0)-50DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 50POS 3MM SMD 0.5MM / Conn Board to Board HDR 50 POS 0.5mm Solder ST SMD T/R
Datasheet
DF12D(3.0)-50DP-0.5V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series DF12
Packaging Reel package
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Win Source Part Number 772564-DF12D(3.0)-50DP-0.5V(81)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name DF12
Introduction Date January 03, 1997
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DF12D(3.0)-50DP-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd DF12 series connector is a 50-position header with outer shroud contacts.

  • Pitch: 0.020" (0.50mm)
  • Application: Board guide
  • Contact Finish: Gold
  • Height Above Board: 0.091" (2.30mm)
  • Mounting: SMD
  • Mated Stacking Height: 3mm
  • Series: DF12
  • Category: Connectors and Interconnects
  • Alternative to: DF12D(3.0)-50DP-0.5V(88)
  • Estimated EOL Date: 2025
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per package: 1k pcs
  • ECCN: EAR99 compliant
