Same model may have multiple batches, images only for reference.

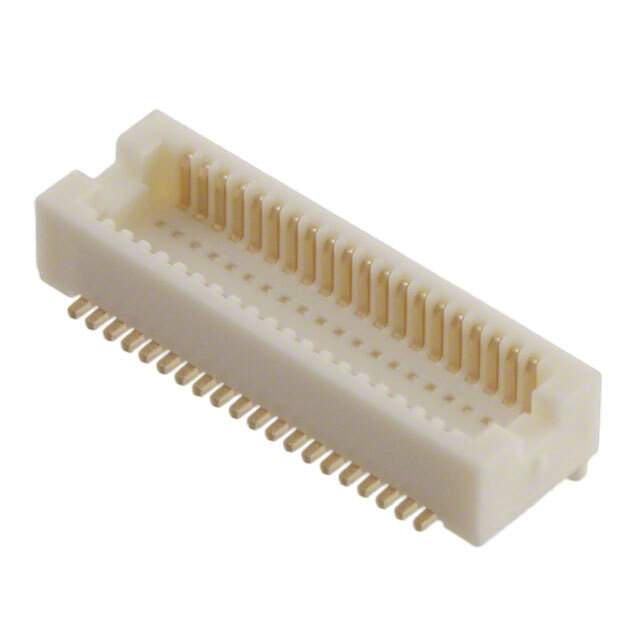

DF12E(5.0)-40DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12E(5.0)-40DP-0.5V(81)

Part No DF12E(5.0)-40DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 40POS 5MM SMD 0.5MM
Datasheet
DF12E(5.0)-40DP-0.5V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 5mm
Height Above Board 0.169" (4.30mm)
Win Source Part Number 1032881-DF12E(5.0)-40DP-0.5V(81)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian DF12E(5.0)-40DP-0.5V(81) CAD Model

Description

The DF12E(5.0)-40DP-0.5V(81) is an electronic component manufactured by Hirose Electric Co Ltd.

  • Supply and Demand Status: Sufficient
  • Product Packaging: reel - TR
  • Number of Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Connector Type: header, outer shroud contacts
  • Number of Rows: 2
  • Contact Finish: gold
  • Contact Finish Thickness: 8μin (0.20μm)
  • Mated Stacking Heights: 5mm
  • Height Above Board: 0.169" (4.30mm)
  • Mounting: SMD (SMT)
  • Quantity Per Package: 1k pcs
