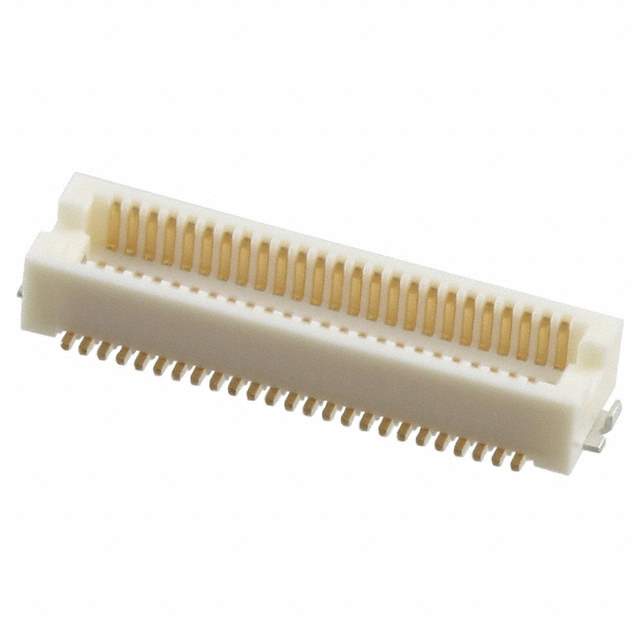

DF12E(5.0)-50DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12E(5.0)-50DP-0.5V(81)

Part No DF12E(5.0)-50DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 50POS SMD GOLD / 50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
DF12E(5.0)-50DP-0.5V(81) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Surface Mount
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm
Height Above Board 0.169" (4.30mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H125201CT,H125201DKR,537-0584-0-81,*DF12E(5.0)-50DP-0.5V(81),DF12E(5.0)-50DP-0.5V(81)-ND,DF12E5.050DP05V81-ND,DF12E5.050DP05V81,Q2161488H,537-0584-0 81,H125201TR
Standard Package 1,000
Win Source Part Number 1332808-DF12E(5.0)-50DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12E(5.0)-50DP-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd DF12E(5.0)-50DP-0.5V(81) is an array, edge type, mezzanine (board to board) connector that is designed for surface mounting.

  • Manufacturer: Hirose Electric Co Ltd
  • Connector Type: Array, edge type, mezzanine (board to board)
  • Mounting: Surface Mounting
  • Connector Style: Header, outer shroud contacts
  • Pitch: 0.020 inches (0.50mm)
  • Number of Positions: 50
  • Number of Rows: 2
  • Contact Finish: Gold plated with a thickness of 8.00µin (0.203µm)
  • Mated Stacking Height: 5mm
  • Height Above Board: 0.169 inches (4.30mm)
  • Status: Obsolete
  • Package: Standard package of 1000
