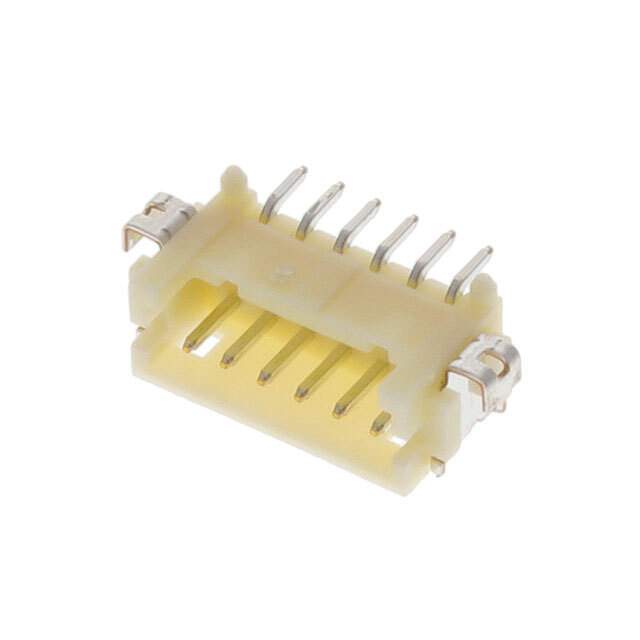

Same model may have multiple batches, images only for reference.

DF13-6P-1.25H(75)

Name: DF13-6P-1.25H(75)
Brand: Hirose Electric Co Ltd
SKU: 1332527
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13-6P-1.25H(75)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 6POS 1.25MM / Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	DF13
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	536-0255-2-75,H126410,DF13-6P-1.25H(75)-ND
Standard Package	39
Win Source Part Number	1332527-DF13-6P-1.25H(75)
Ultra Librarian 3D Model	Ultra Librarian DF13-6P-1.25H(75) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13-6P-1.25H(75) is a 6 position header connector with male pins.

Positions: 6
Fastening: Detent Lock
Features: Board Guide, Solder Retention
Voltage Rating: 150V
Contact Material: Brass
Insulation Material: Polyamide (PA) and Nylon
Insulation Color: Beige
Shrouded: 4 Walls
Contact Shape: Square
Contact Finish (Mating): Tin (39.4µin or 1.00µm)
Contact Finish (Post): Tin (39.4µin or 1.00µm)
Temperature Range: -35°C ~ 85°C
Application: Board to Cable/Wire
RoHS Compliant: Yes
