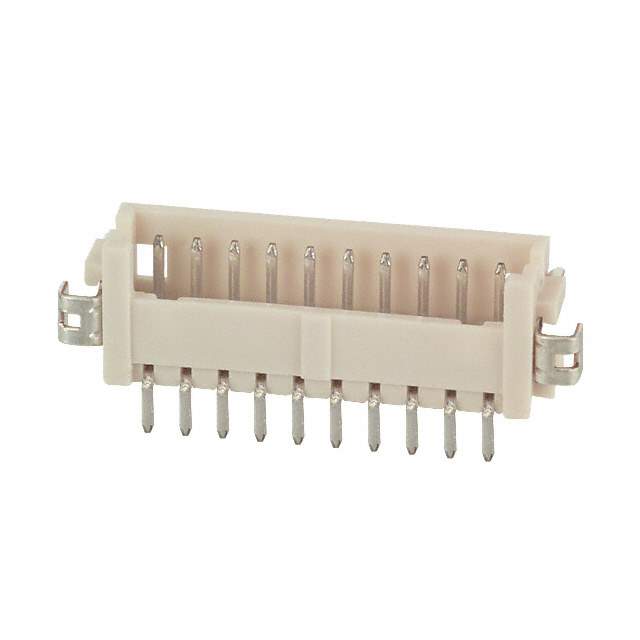

Same model may have multiple batches, images only for reference.

DF13A-10P-1.25H(20)

Name: DF13A-10P-1.25H(20)
Brand: Hirose Electric Co Ltd
SKU: 1293324
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DF13A-10P-1.25H(20)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Other Names	*DF13A-10P-1.25H(20),DF13A10P125H20,H3375
Standard Package	28
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293324-DF13A-10P-1.25H(20)
Ultra Librarian 3D Model	Ultra Librarian DF13A-10P-1.25H(20) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13A-10P-1.25H(20) is a 10-position header connector that features solder retention.

Pitch: 0.049" (1.25mm)
Mounting: Surface Mounted and Right-Angled
Contact Finish: Tin with a thickness of 39.4µin (1.00µm)
Category: Connectors and Interconnects
Status: Obsolete
Current Rating: 1A
Voltage Rating: 150V
