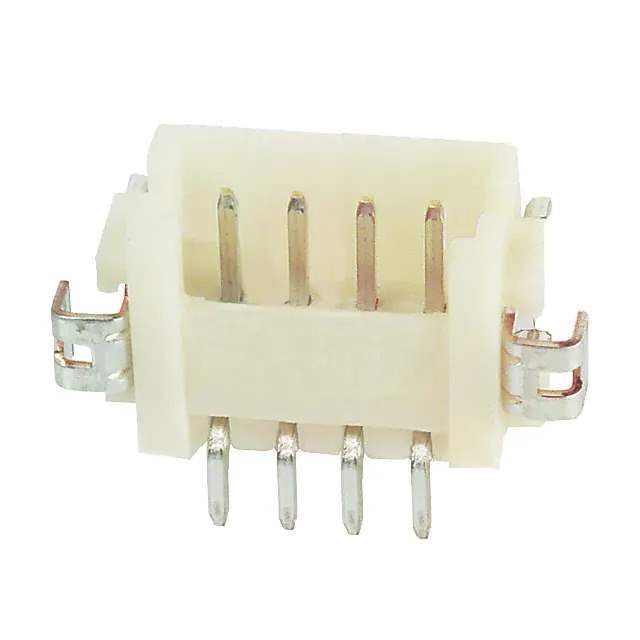

Same model may have multiple batches, images only for reference.

DF13A-4P-1.25H(21)

Name: DF13A-4P-1.25H(21)
Brand: Hirose Electric Co Ltd
SKU: 845080
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF13A-4P-1.25H(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 4POS 1.25MM / Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Base Product Number	DF13A
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845080-DF13A-4P-1.25H(21)
Ultra Librarian 3D Model	Ultra Librarian DF13A-4P-1.25H(21) CAD Model

Alternative Products

Description

The DF13A-4P-1.25H(21) is a male pin header connector from Hirose Electric Co Ltd.

Series: DF13
Positions: 4
Connection Type: Board-to-Cable/Wire
Mounting Type: Right Angle, Surface Mount
Pitch: 0.049" (1.25mm)
Current Rating: 1A
Contact Material: Brass
Contact Finish: Tin
Material: Polyamide (PA), Nylon
Voltage Rating: 150V
Temperature Range: -35°C to 85°C
Package: Tape & Reel or Cut Tape
Standard Quantity: 1,000 pieces
Product Status: Active
