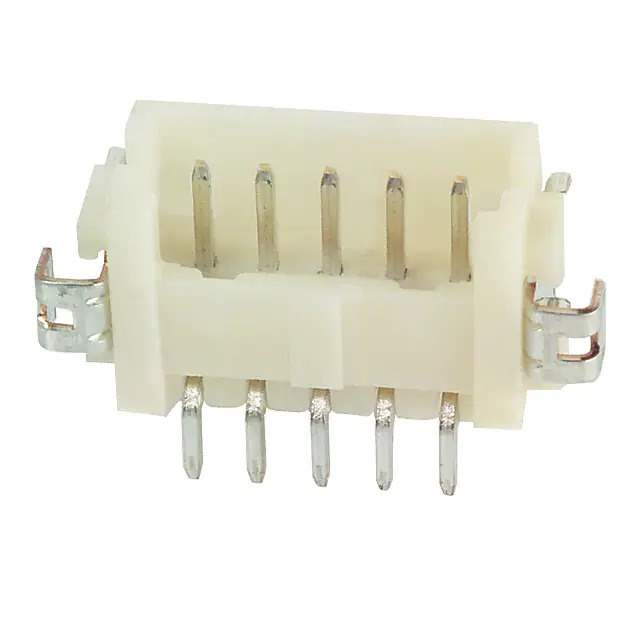

DF13A-5P-1.25H(21) Real Image
Same model may have multiple batches, images only for reference.

DF13A-5P-1.25H(21)

Part No DF13A-5P-1.25H(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 5POS 1.25MM / Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.142" (3.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Base Product Number DF13A
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868431-DF13A-5P-1.25H(21)
Ultra Librarian 3D Model Ultra Librarian DF13A-5P-1.25H(21) CAD Model

Description

The Hirose Electric Co Ltd 868431-DF13A-5P-1.25H(21) is a male pin header connector from the DF13 series.

  • Series: DF13
  • Connector Type: Rectangular
  • Positions: 5
  • Features: Solder Retention
  • Application: Board to Cable/Wire
  • Pitch: 0.049" (1.25mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Operating Temperature: -35°C to 85°C
  • Mounting: Surface Mount, Right Angle
  • Design: Shrouded 4-Wall
  • Insulation Material: Polyamide (PA) and Nylon
  • Flammability Rating: UL94 V-0
  • Package: Tape & Reel
  • Standard Package: 1,000 pcs
