Same model may have multiple batches, images only for reference.

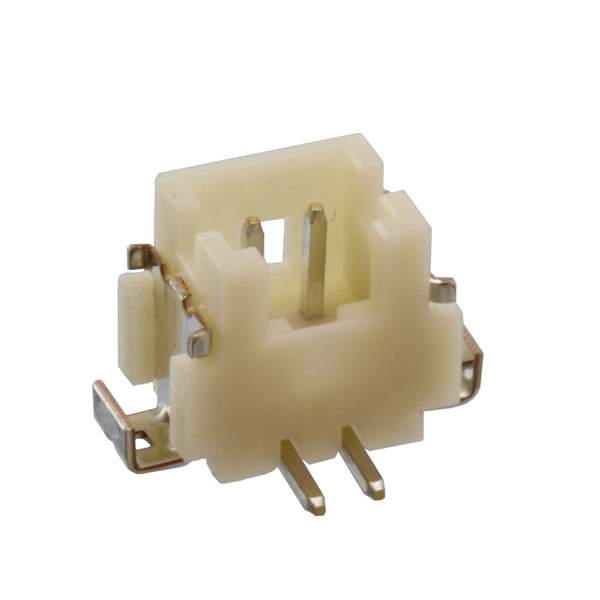

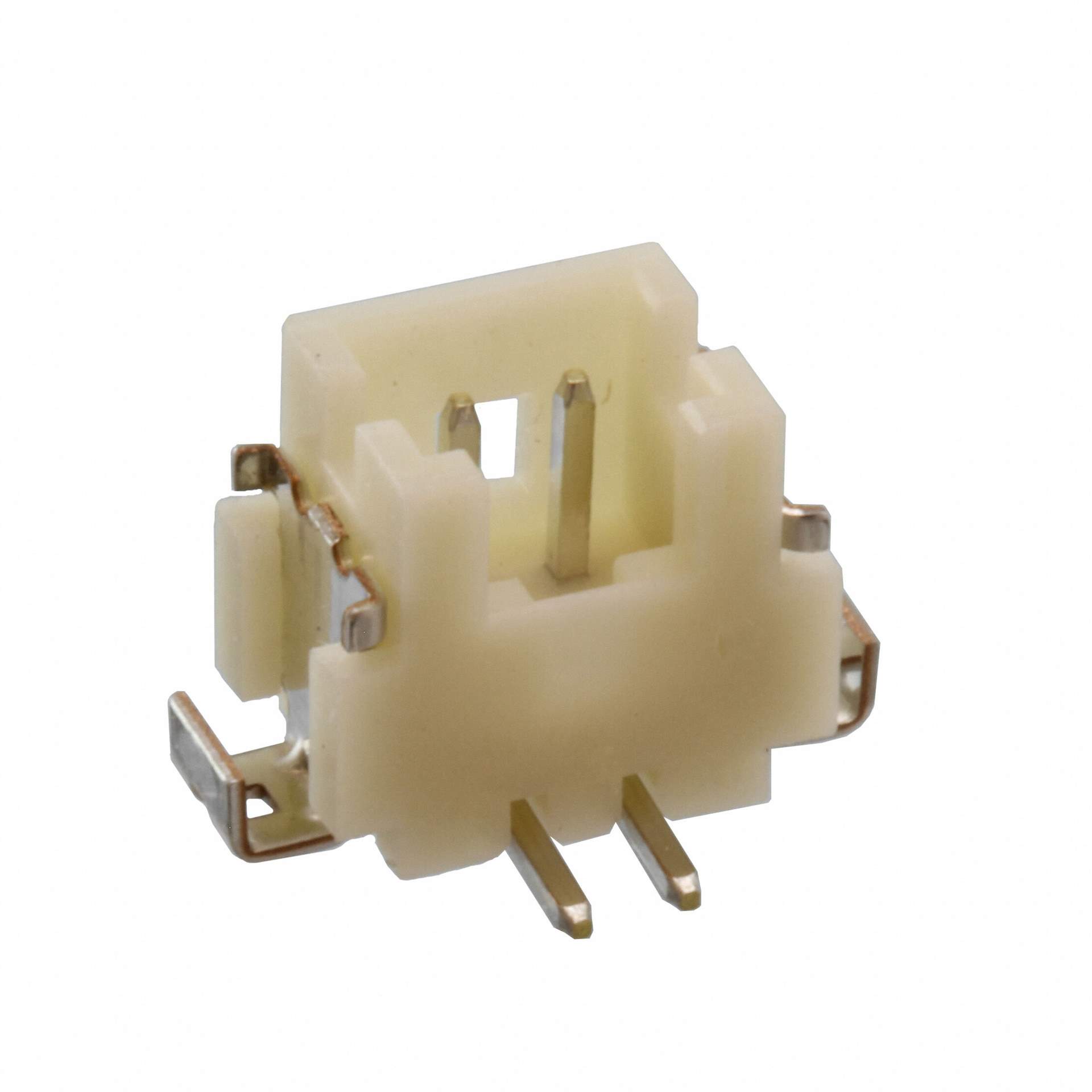

DF13B-2P-1.25V(21) Real Image
Same model may have multiple batches, images only for reference.

DF13B-2P-1.25V(21)

Part No DF13B-2P-1.25V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 2POS 1.25MM / Connector Header Surface Mount 2 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
Base Product Number DF13B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125994DKR,H125994CT,536-0051-2-21,DF13B-2P-1.25V(21)-ND,H125994TR
Standard Package 1,000
Win Source Part Number 1155167-DF13B-2P-1.25V(21)
Ultra Librarian 3D Model Ultra Librarian DF13B-2P-1.25V(21) CAD Model

Description

The Hirose Electric Co Ltd DF13B-2P-1.25V(21) is a board-to-cable/wire connector with a 1.25mm pitch.

  • Pitch: 1.25mm
  • Number of Positions: 2-position
  • Pin Header Type: Male
  • Termination Type: Solder
  • Fastening Type: Detent lock
  • Contact Material: Brass
  • Voltage Rating: 150V
