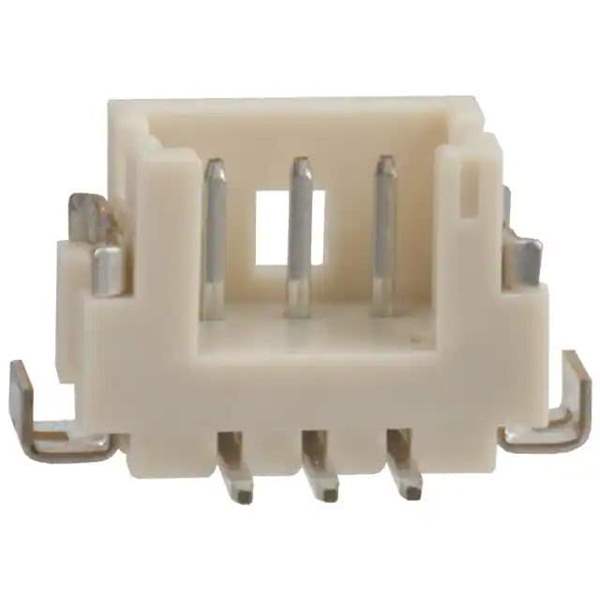

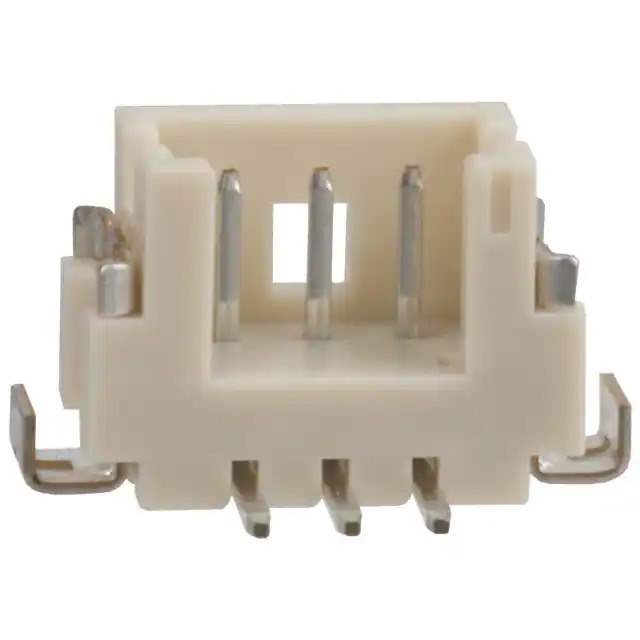

Same model may have multiple batches, images only for reference.

DF13B-3P-1.25V(21)

Name: DF13B-3P-1.25V(21)
Brand: Hirose Electric Co Ltd
SKU: 916953
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13B-3P-1.25V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 1.25MM / Connector Header Surface Mount 3 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Base Product Number	DF13B
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	916953-DF13B-3P-1.25V(21)
Ultra Librarian 3D Model	Ultra Librarian DF13B-3P-1.25V(21) CAD Model

Alternative Products

Description

The DF13B-3P-1.25V(21) is a male pin header connector from the DF13 series by Hirose Electric Co Ltd.

Series: DF13
Positions: 3
Pitch: 0.049" (1.25mm)
Mounting Type: Surface Mount
Package: Tape & Reel
Pieces: 1,000
Features: Board Guide, Solder Retention
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 150V
Current Rating: 1A
Flammability Rating: UL94 V-0
HTSUS Code: 8536.69.4040
Status: Active
